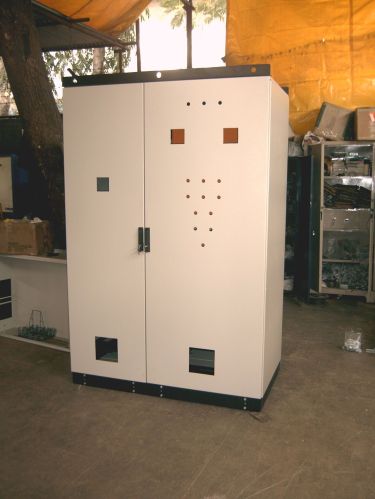

We Offer Modular Frame Structure Enclosures.
sub-assemblies:
01) modular Frame Structure:
made of 3.00 Thk Folded Crca Sheet with Vertical and Horizontal (depth
Wise) Indexing Holes Dia 9 & Dia 4.2 in 12.5 Mm Pitches.
02) base:
made in 3.00 Thk Folded Sheet with Removable Front and Rear Covers in 2.00
Thk. Base Cover Can Be Slotted for Ventilation from Bottom (if Required).
03) door:
front & Rear Single Door / Split Doors / Partial Doors in 2.00 Thk Crca
Sheet. with Support Channels, Sheet Metal Special Hinges, 3/4 Point Handle lock.
04) cover:
front Fixed Bolted Cover in 2.00 Thk for Instrumentation Panels in Place Of
Door. When Door Not Necessary At Rear Screwed Cover in 1.5 Thk.
05) bottom Gland Plates:
in Varying Combination in 2.00 Thk Folded Crca Sheet. Slotted or Perforated
Bottom Covers in 1.5 Thk (for Ventilation from Bottom if Required).
06) side Cover:
screwed Side Covers in 1.5 Thk Crca Sheet
07) top Cover:
in 1.5 Thk Crca Bolted in Lifting Eye Bolts Itself.
08) component Mounting Plate:
in 2.00/3.00 as per Requirement.
- Size (width -100) X (height - 100) with Depth Wise Adjustable Mounting In
25 Pitch.
- Partial Component Mounting Plates in Any Size Within Maximum Size Range.
09) inter Panel Separator:
made in 1.5 Thk When Two or More Enclosures Joined Together.
10) lifting Eye Bolts:
hooks are Used for Normal Weight and Heavy Duty Angles for Bigger
Enclosures.
11) 19'' Rack:
din Standard 19” Equipments Mounting Arrangement is Possible.
12) 19"swing Frames:
suitable for 19” Mounting in Width and Height as per Requirement.
standard Sizes:
width: 500mm ~ 2000mm (pitch of 100mm)
depth: 400mm ~ 1000mm (pitch of 50mm)
height: 1000mm ~ 2200mm (pitch of 100mm)
base: 75mm, 100mm, 150mm and 200mm
* Up to 1000mm Width Single Door Can Be Provide Above 1000mm Split Doors are Recommended
* Up to 1200mm Width Single Welded Structure Can Be Provide & for Width Above 1000 Mm Two Separate Structures or Twin Welded Together Structure is Recommended.
