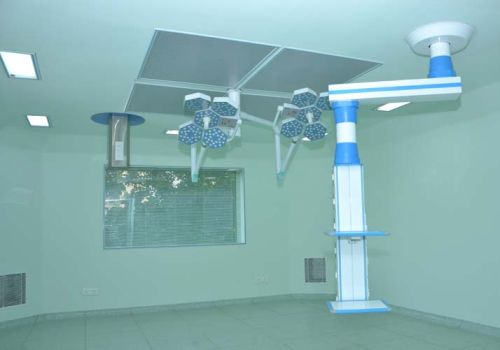

Modular Operation Theater

The wall and ceiling panel can be made out of following material as per customer requirement in an operation theater. A) 1.6mm thick EGP steel panels backed by 12mm thick Gypsum. B) Stainless steel SS202 or SS304 panels. C) High-pressure Laminate panels as per EN standard. D) PUF sandwiched panel. The room wall will have two independent surfaces with a minimum opening in between. The external walls of the room will be constructed with solid bricks with cement plastering. The inner surfaces walls will be constructed with 1.60mm thick EGP steel panels backed by 12-mm gypsum board (India gypsum make) these panels will have flame resistance to BS1142 part 3.
The inner surface walls will be fixed to the bricks wall with essential supports in an modular operation theatre. There will be minimum possible cavity/gap in between the solid and steel walls. The total distance between the inside and outside surfaces of the operating room will be variable to suit the architect’s layout, but will be sufficient for the flush mounting of equipments.The individual wall panels will be spot welded together at equal intervals to render equal support to the panels. Spot welding will be properly grinded to make the surface leveled. All joints will be filled with metal filler and sanded flush on site ready to receive the plastic finish. Wall panel’s joints will be invisible after the final wall coating is applied.Cavity between the inner and outer walls will be left with minimum obstruction for the possible addition of equipment at a later date and to enable services, pipes, conduits etc. toberun within the cavity.Wall mounted equipment will be flush mounted and sealed into theatre.
