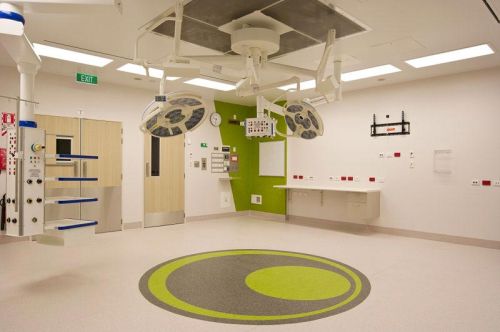

Modular Operation Theater

Modular operation theater & equipment we are one of the prominent manufacturers & suppliers of this wide range of modular operation theater & equipment products that are completely verified and safe to use. In this exclusive range we are obliged in providing material such as operation theater lights, modular ot ceiling filtration system, prefabricated modular o.t., sliding door for modular o.t. All these products are as per predefined standards.
modular operation theater sliding door
creative uses hermetically sealed sliding doors, to maintain satirically and the correct air pressure in the room, which requires less valuable space than hinged doors. The door can be operated manually or automatically with microprocessor based electronic automation system.
meets international quality and safety requirements.
motor : brush less dc motor
noise level of movement : less then 60 decibel.
controller : microprocessor based.
the track : single piece extruded aluminum.
vision window : 300mm x 300mm
environment "temperature : -20°c to +55°c.
starting time will be able to regulating from 5 second to 20 second and starting speed will be 600mm per second.
electrical safety codes for high and low voltage system
the door frame is made out of high quality anodized aluminum extrusion and the door panel is made out of compact laminated board that can withstand high abrasions. The door will run on rubber rollers and guide with nylon runner guide which are fixed to the door in such a way that they do not obstruct trolley movement through the door.
the controller will be capable of either being operated by elbow switchesfoot switches, radar switch (touch less sensor). All doors will be able to be operated manually easily in the event of failure power supply or the automation unit.
