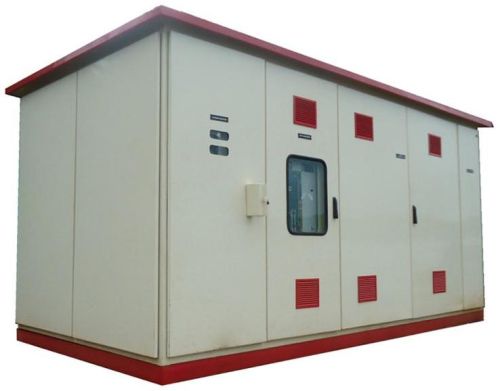

The Modular Substations are a state-of-the-art-system that simplifies conventional substation design. Modular Substations are built as a product in line with the thinking of the architects who are quite concerned with aesthetics, safety and easy of installation. Due to enclosed construction, Modular Substations avoid bird hit, human/animal contacts which may lead to fatal accidents, disruption of supply and power loss in open execution substation. In open execution installations, the AB Switch/ Transformer/LA/HG fuse are mounted on either two or four pole structures. The hanging and sagging of wires gives a clumsy appearance affecting the elevation of the building. Modular Substations are an underground cable in – cable out technology. Moreover, the tall structures not only occupy the floor area, but also shaft area along the high-rise building. Space Saving & Cost Effective : Space is major constraint in urban areas. Space to install Modular Substations is typically 4m x 2m which is approximately the space required for a car park. Saving of floor space to the tune 80-85% can be achieved by installing MSS as compared to that required for conventional installation. Salient Features :

• Aesthetically pleasing design, does not affect the elevation of commercial complex
• Inaccessible to live parts, hence high degree of personal, animal & public safety
• Compact in construction, occupies less floor space i.e. 4 x 2 = 8m2 only
• Highly Fire Retardant, as the transformers used are dry, cast resin type
• Resistant to outside temperature and humidity
• Minimal moving parts and maintenance free
• High durability and operational reliability
• Low power loss and low noise transformer
• Tailored configuration to customer needs
• Easy to install, operate and maintain
• Factory assembling and testing
• Reduced environmental impact
• Reduced site installation time
• All weather proof enclosure
• Easy for transportation

Modular Substations are the factory built packages having 4 compartments :

• 11KV Metering
• HT Switchgear
• Dry type Distribution Transformer
• LT Switchgear with Metering of desired rating with LT check metering

Applicable Standards : Modular Substations are designed and tested in accordance with IS 11171 and also with individual standards of equipment like IS 2705, IS 3156, IEC 60044-2, IEC 60044-1. Application : Available in both Indoor/Outdoor Versions for :

• Commercial buildings
• Housing Colonies
• Shopping Malls
• Hotels
• Industry
• Hospitals
• Schools
• Mobile Substations
