Mold Heating Element

Product Description:

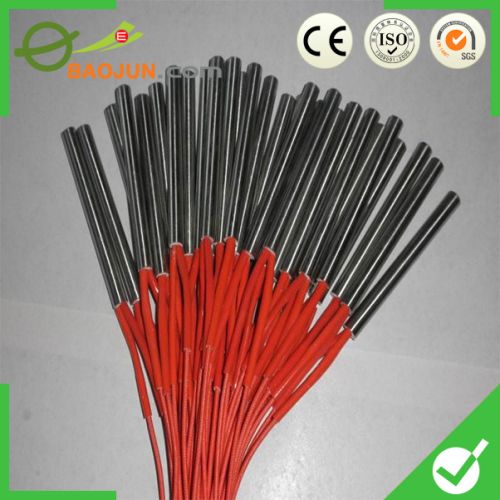

Cartridge heater is cylindrical electrical heating elements. Protected with a stainless steel sheath, their watt density can reach 25 Wcm2 and their operating temperature can go up to 800°C (1472°F)
Mostly cartridge heater is used for heating up solids such as injection presses heating plates or various tools, cartridge heater can also be used for heating up water of gases under certain conditions. Widely used for manufacturing plastic and rubber parts in the car industry or in the food processing industry, etc . cartridge heaters are also commonly found in the chemical, electronics, medical equipment, packing and nuclear industries
Various cartridge heater technologies are available. The choice of technology will depend on technical specifications required and the application. Unless you know exactly which product you are looking for, we will recommend you the best solution for your needs.
Technical detail:
Wattage Tolerance: +5%, -10%
Resistance tolerance: +10%, -5%
Length tolerance: ± 2% or 3.2mm (18”), whichever is greater.
Camber tolerance: 1.7mm per meter (0.020” per foot).
Diameter tolerance: Diameter at each end may vary +0.05mm -0.1mm (+.002" -.004")
Escape of current (when cold):
