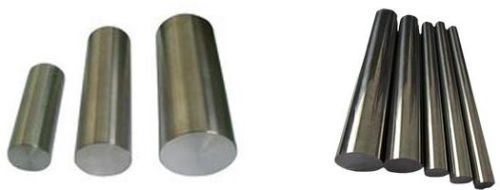

Monel 400 Round Bar, Dimension : EN, DIN, JIS, ASTM, ASME, AISI

Monel 400 Bars Equivalent Grades

STANDARD	WERKSTOFF NR.	UNS	GOST	AFNOR	JIS	BS	EN
Monel 400	2.4360	N04400	МНЖМц 28-2,5-1,5	NU-30M	NW 4400	NA 13	NiCu30Fe

Monel 400 Round Bar Chemical Composition

Grade	C	Mn	Si	P	S	Cr	Mo	Ni	W
Monel 400	0.010 max	0.50 max	0.08 max	0.02 max	0.02 max	20 - 22.5	12.5 - 14.5	Bal	2.5 - 3.5

Monel 400 Round Bars Mechanical Properties

Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
8.69 g/cm3	1399 °C (2550 °F)	Psi – 1,00,000, MPa–690	Psi – 45000, MPa–310	45 %
