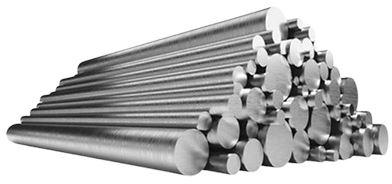

Monel k500 Round Bar, Dimension : ASTM, ASME API

Monel K500 Bars Equivalent Grades

STANDARD	WERKSTOFF NR.	UNS
Monel K500	2.4375	N05500

Monel K500 Round Bar Chemical Composition

Grade	Ni	Fe	C	Mn	Si	Cu	Al	S	Ti
Monel K500	63.0 min	0.5 – 2	0.25 max	1.5 max	0.5 max	27.0 – 33.0	2.3 – 3.15	0.010 max	0.35 – 0.85

Monel K500 Round Bars Mechanical Properties

Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
8.44 g/cm3	1350 °C (2460 °F)	Psi – 160000 , MPa – 1100	Psi – 115000 , MPa – 790	20 %
