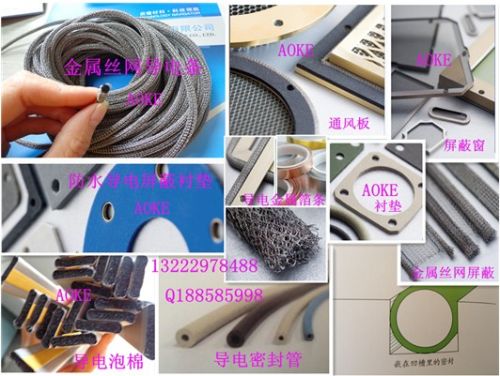

Monel Wire Conductive Shielding Seal, Brand Name : aoke

We offer monel wire conductive shielding seal.
Monel wire conductive shielding seal knitted wire mesh gaskets provide an excellent cost effective emi gasket, providing shielding in the magnetic as well as electric fields. Kemtron knit in four wire types, monel, stainless steel, aluminium and tin plated copper clad steel. Knitted mesh gaskets can be supplied as solid mesh or knitted over elastomeric cores with or without environmental seal in continuous lengths or fabricated to custom designs.
This product consists of a knitted wire mesh tape that is formed into a solid profile that is then over knitted making a continuous gasket strip. The conductive metallic knitted wire is flexible and compressible which makes an excellent rfi/emi/emp gasket.
Performance
frequency field monel aluminiu tin stainless
10 khz h 45 40 60 40
100 khz h 49 45 65 44
1 mhz h 60 60 85 58
1 mhz e 125 125 125 125
10 mhz e 120 120 120 120
100 mhz e 100 100 108 100
400 mhz p 98 95 99 94
1 ghz p 85 76 78 76
10 ghz p 80 65 62 60
if you are interested, please call tel 0512-63935021 or email judge20111@126.com, qq:188585998 skype:aotemakejdl
