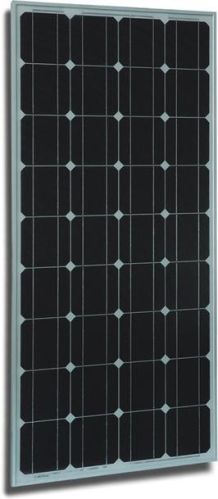

Mono Crystalline Solar Panel

We are offering 90w Mono-crystalline Solar Panel, 5 inch mono-crystalline solar panel, 75w - 100w
series number:tm075m-36 - tm100m-36
manufacturer:tm solar power co.,ltd. jiangyin city, china
high cell efficiency pv solar panel with quality silicon material for long term output stability and reliability.
rigorous quality control to meet the highest international standards.
high transmittance, low iron tempered glass with enhanced stiffness and impact resistance.
unique frame design with high mechanical strength for easy installation.
advanced encapsulation material with multilayer sheet lamination to provide long-life and enhanced cell performance.
outstanding electrical performance under high temperature and low irradiance conditions.
36 back-contact monocrystalline si solar cells (approx. 20%).
applications
commercial/ industrial building pv solar roof-top off-grid systems.
residential pv solar roof-top off-grid systems.
any commercial / industrial ground mount off-grid systems.
other off-grid industrial and commercial solar pv applications.
warranty
1.seller should adopt best materials and workmanship to manufacture and supply the above stated commodities to buyer, 100% checked and tuv,vde,ul,mcs standards compliant
2.10 years warranty for not less 90% rated power output, and 25 years for not less 80% output
3.100% dielectrical safety test and checking
4.10 year workmanship warranty, would be enclosed with the supplied products
certifications
tuv sud�iec61215 iec61730� cqc mcs
electrical characteristics
all specified parameters are at stc 25�ambient, 1000w/ m irradiance and am 1.5
type tm075m-36 tm080 m-36 tm085 m-36 tm090 m-36
max-power pm(w) 75 80 85 90
module-power range(w) 80>pm�75 85>pm�80 90>pm�85 pm�90
power tolerance(w) +0~+5 +0~+5 +0~+5 +0~+5
max-power voltage(v) 17.8 18.2 18.5 18.5
max-power current lm(a) 4.22 4.4 4.59 4.86
short-ciruit current lsc(a) 4.72 4.89 5.14 5.3
open-circuit voltage voc(v) 21.6 22.1 22.2 22.4
max-system voltage(vdc) 715v(iec)
cell efficiency(%) 14.0/13.5 15/14.4 15./15.2 16.8/16.1
module efficiency(%) 11.6 12.4 13.1 13.9
max.series fuse(a) 10
pm temperature coefficients(w/centigrade) -0.9964
lsc temperature coefficients(a/ centigrade) 0.0023
voc lsc temperature coefficients(v/ centigrade) -0.1801
npct nominal operating cell temperature 47â±2 centigrades
mechanical characteristics
cable type,diameter and length 4mm,tuv certified,1000mm
type of connector compatible type iv
number,type and arrangement of cells 36 pcs, mono-crystalline silicon(4ã�9)
cell size(mm) 156ã�156(d200)
dimension(mm) 1482ã�676ã�40
weight(kg) 12
no.of draining holes in frame 10
glass,type and thickness high transmission,low lron,tempered glass 3.2mm
packaging configuration
packing configuration 24 pcs/box or 2 pcs/box
quantity/pallet 56pcs/pallet
loading capacity 840pcs/40ft
absolute ratings
dielectric insulation voltage 3000v
operating temperature(centigrade) -40 - +85
storage temperature(centigrade) -40 - +85
compiled by mr.hanson gu, the sales director of tm solar power co.,ltd.
