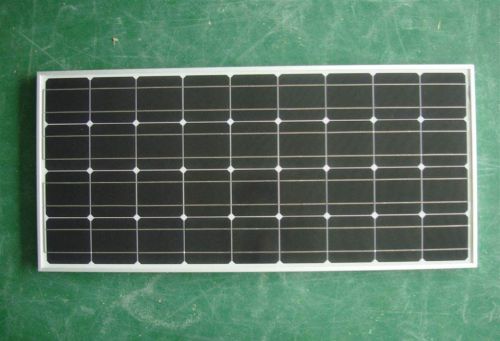

Mono Solar Panel

We offer mono solar panel 100w. Tuv certified solar panels manufacturers in china mono 100wp
item no.: sy-100m
cell type: mono-crystalline silicon solar cells
maximum power (wp): 100wp
maximum power voltage (v): 18.50v
maximum power current (a): 5.40a
open circuit voltage (v): 22.50v
short circuit current (a): 5.60a
number of cells (pcs): 36 (4*9) pcs
size of module (mm): 1210x 540x 35mm (125*125mm cell)
temperature range: -40â°c~+85â°c
novt(nominal operating cell temperature): 45â°câ±2â°c
voltage temperature coefficient (voc): -0.38%â°c
current temperature coefficient(isc): +0.1%â°c
power temperature coefficient (pmp): -0.47%â°c
maximum system voltage (v): 1000v
surface maximum load capacity: 60ms(200kgsq.m)
allowable hail load: steel ball dropped from 1 meter
certificates: tuv, rohs, ce, iso
output tolerance (%): â±3%
weight per piece (kg): 9.0kg
glass type: 3.2mm tempered glass
junction box type: passed the tuv certified
length of cables (mm): 900mm
connector type: mc4
frame (material, corners, etc.): anodized aluminum alloy
cell efficiency (%): 18.7%
module efficiency (%): ¥15.3%
ff (%): ¥73%
standard test conditions: am1.5 100mwcm2 25 c
warranty: 5 years product warranty, 10years for 90% power ,25years for 80% power;
