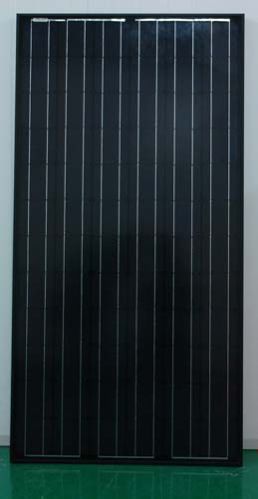

Mono Solar Panel

We are offering mono solar panel,
number of cells (pcs) 72
maximum power (pmax) 190w
output tolerance plus
open circuit voltage(voc) 43.2v
short circuit current (isc) 6.2a
maximum power voltage (vmp) 36v
maximum power current(imp) 5.27a
standard test condition (stc): irradiance level 1,000w/m2, spectrum am 1.5, and cell temperature 25℃
temperature coefficients of pmax -0.549%/℃
temperature coefficients of voc -0.397%/℃
temperature coefficients of isc +0.06%/℃
maximum system voltage (v) 1,000 vdc
temperature cycling range -40℃～+85℃
surface maximum load capacity 2,400pa
allowable hail load 227g steel ball fall down from 1m height
dimensions (mm) 1580mm(l)×808mm(w)×35mm(h)
frame aluminium-alloy
length of cables (mm) 900
weight(kg) 19kgs
packing 25pieces for one pallet
warranty 12 years warranty, 90% for 10 years, 80% for 25 years.
