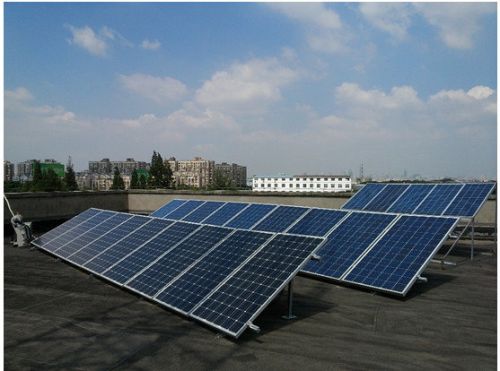

Contact SupplierWe are offering mono solar panels.
Material monocrystalline silicon
related maximum power(pmax) :250w
current at pmax(imp): 8.22a
voltage at pmax(vmp) :30.4v
short-circuit current(isc) :8.73a
open-circuit voltage(voc) :37.1v
module dimension: 1640*992*40mm
cell dimension: 156*156mm
cell configuration 60(6*10)pcs in series
power temperature coefficient: -0.44%k
open-circuit voltage temperature coefficient :-0.32%k
short-circuit current temperature coefficient :0.05%k
all technical data at stc: am1.5 e=1000wm² tc=25℃
nominal operation cell temperature :45±2℃
weight :18kg
front glass 3.2mm, high transmission, low iron, tempered glass
junction box ip65 related
frame anodized aluminium-alloy
packing configurations 2pcscarton
warranty 10 years limited product warranty
first year guarantee no less than 97% power output
25 years guarantee no less than 80% power output
delivery time within 7 days after down payment received
