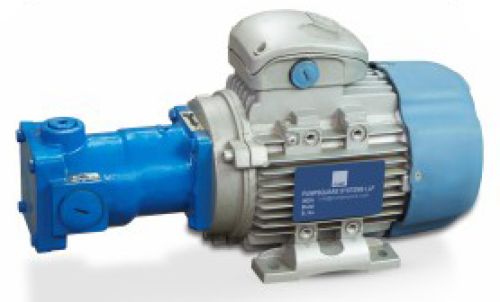

Monoblock Gear Pumps

• Max Capacity: Up to 80 LPM
• Max Pressure: Up to 6 Bar
• Temperature: Up to 120 Degree C.
• Viscosity: 20 - 320 Cst.

IL 2X series has been developed as a successor to the IL1X Series Generation, but with a modular design for the most rugged application. The users have peace of mind to an extent that all the pain points like coupling, coupling guards, alignment and shaft runout is eliminated. Furthur, the evolution of design is such that the bearings don't come in contact with the liquid and if need arises for maintenance, the pumps need not be disturbed from the pipe lines.The working principle is simple. There are two pumping elements with gear in gear principle. As the shaft rotates, they mesh & un-mesh displacing the liquid axially through its pumping elements. Axial flowthrough elements ensures better suction, very low noise level and nearly pulsation free flow.

• Just buy the pump head and easily fit it on your motor at your works.
• Monoblock Pump Head can be used across any type of motor & any brand motor as far as the Frame Size of the Motor remains same.
• With Built-In Relief Valve
• Improved Rotor Profiles for Smooth Meshing, minimizing internal losses and excellent suction capabilities.
• External bearing Design, Liquid doesn't come in contact with bearings.
• Low Power Consumption, Higher efficiency than traditional pumps.
• Eliminates the need of Mounting Frames & Coupling.
• Pump shaft is well supported on ball bearings to reduce the loads on the rotor as well as motor shaft.
• Hardened Shaft, Low Noise, no shaft run out, compact and light weight.
• Fit & Forget Design
• Reduced cost of your end product and monetary savings for you
• Value addition on your delivery of product as monoblock gear pumps with special motor ratings can be easily delivered

• Horizontal Face Mounted Pumps for Close Couple Design with the Prime Mover.
• Pump mounting flanges to Suit B14 Face of standard Frame IEC Motor
• Electrical Motor to be of Foot + Face (B3 + B14 = B34)Type.
• Horizontal & Vertical Mounting as per your selection

• Three Phase AC Motor
• Single Phase AC Motor

• Unloading, Loading & Transfer of all types of Oils
• Circulation & Forced Lubrication in your Machines & Equipments
• As Filtration Pumps and Fuel Injection Pumps
• In Hydraulic Power Packs
• For all Low Pressure - Continuous & Intermediate Duty Applications.

• All types of Lubricating, Gear Oil, Water Emulsions & Transformer Oils
• Hydraulic Oil, Coolant Oil, Neat Cutting Oil, Mineral Oil,
• Furnace Oil & Fuel Oils like HSD & LDO

Any media having good lubricating properties

Pump Housing & Covers: Cast Iron

Rotor Set: Sintered Iron

Shaft: Hardened Alloy Steel

Relief Valve Parts: In Spring Steel & Cast Iron

Shaft Sealing Type: Lip Seal (Mechanical Seal Optional)

Sealing Kit Elastomers: Nitrile (Viton Optional)

Pump must be protected against solid particles in the fluid by suitable suction filters. Also, Running Dry or with Non-Lubricating Liquid will damage the pump.
