Monoblock Valves

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

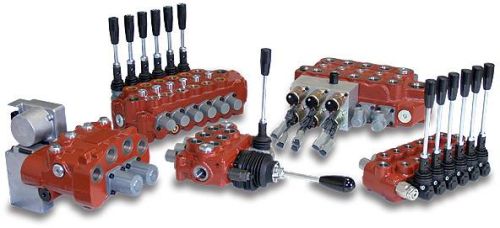

Overview : Simple, compact and heavy duty designed, these valves are used when dimensions, weight and price are extremely important. Walvoil monoblock valves have been successfully used in fields such as agriculture, earth moving machines, lifting equipments, aerial platforms and truck articuled boom cranes.

View More Details

Send Enquiry

Company Information

VNM HYDROTEK

Masjid Bunder, Mumbai, Maharashtra

View Number

Member Since 7 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Nominal flow	Max. pressure	Nr. of sections	Standard threads*
				BSP	UN-UNF
Type	(l/min - US gpm)	(bar - psi)		ISO 228/1	ISO 11926€“1
SDM080	25 - 6.6	315 - 4600	1·6	G 1/4	SAE 6
SDM081	25 - 6.6	315 - 4600	1·6	G 1/4	SAE 6
SD4	45 - 12	250 - 3600	1	G 3/8	SAE 6
SD5	45 - 12	315 - 4600	1·7	G 3/8	SAE 6
SDM105	45 - 12	315 - 4600	1	G 3/8	SAE 6
SDM110	45 - 12	315 - 4600	1·6	G 3/8	SAE 6
SDM100	70 - 18	315 - 4600	1·6	G 3/8	SAE 8
SD11	70 - 18	315 - 4600	1·6	G 1/2	SAE 8
SDM140	80 - 21	315 - 4600	1·6	G 1/2	SAE 10
SD14	120 - 32	250 - 3600	1	G 3/4	SAE 12
SD18	160 - 42	250 - 3600	1·6	G 3/4	SAE 12
Load-Sensing valves configuration
DLM140	110 - 29	250 - 3600	1·6	G 1/2	SAE 10

Front-loaders application
SDM102	45 - 12	250 - 3600	2	G 3/8	SAE 6
SDM103	45 - 12	250 - 3600	2	G 3/8	SAE 6
SDM122	80 - 21	250 - 3600	2	G 1/2	SAE 10
SDM143	80 - 21	250 - 3600	2	G 1/2	SAE 10
Front-loaders application: Load-Sensing configuration
DLM122	80 - 21	250 - 3600	2	G 1/2	SAE 10
DLM142	80 - 21	250 - 3600	2	G 1/2	SAE 10
Skid steer loaders application
SDM141	80 - 21	250 - 3600	3	G 1/2	SAE 10
