Monolayer Water Cooling Film Blowing

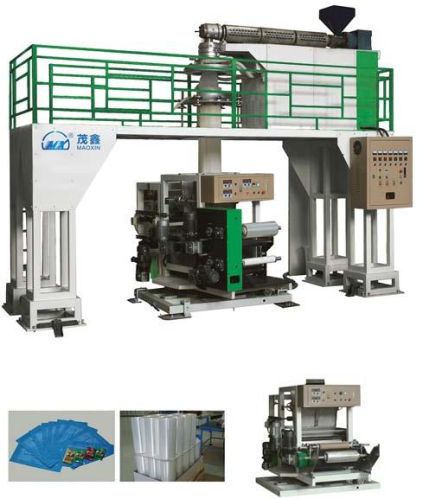

Monolayer(rotary traction downward blowing) Water-cooling Film Blowing Machine
Optional center winding and friction winding
Features
* The function of downward blowing and water cooling ensure the excellent transparency of the film. * The pre-cooling of cooling water ring and the sharp cooling of sizing cover’s overflow water enable the film bubble to be stable, thus distribute the thickness evenly. * The first and second driving system adopt the high speed control of the converter, the rewinding system adopts the driving of the moment motor, so the film tension is constant. * Hot drying device enables the film surface to be dry enough, which is good for the conrona treatment. * The extruder has a high output and good plastifying effect. * The operation of electrical control system is reliable. * It is suitable for the material production of PP,LDPE,MLLDPE. * PP film is with the brightness and transparency, It is the ideal packing material for the top-class garment, handicrafts, photo album, gift, and food. Main Technical Parameters：(Design and specifications are subject to change without notice.)
Model MXDC-55-700
Suitable material PP, LDPE
Single layer structure A
Layfat width of film 600mm
Thickness of film 0.02~0.10mm
Max.extrusion output 50kgh
Screw diameter Ф55mm
Screw LD Ratio 30:1
Screw rotation 10~80rmin
Power of main motor 15kw
Rotary traction form ±360°rotate
Total power 35KW
Machine of weight 5T
Overall Dimension L×W×H 4.5×1.8×4.6m
