MOS-5E Gas Sensor

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

The ULTIMA MOS-5E Hydrogen Sulphide Addressable Transmitter is a highly reliable, self contained, micro processor-controlled single point monitor with integral 3 digit readout. It is designed to....

View More Details

Send Enquiry

Company Information

TOBIT ENGINEERS

Andheri East, Mumbai, Maharashtra

View Number

Member Since 19 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

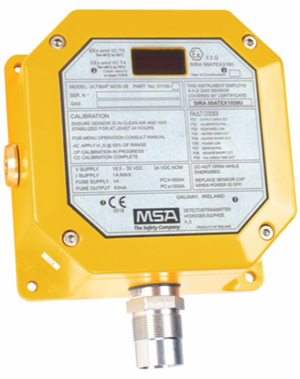

The ULTIMA MOS-5E Hydrogen Sulphide Addressable Transmitter is a highly reliable, self contained, micro processor-controlled single point monitor with integral 3 digit readout. It is designed to measure and display concentrations of H2S in three ranges: 0-20 ppm, 0-50 ppm or 0-100 ppm, but will continue to display concentrations up to 120 % FSD. The sensing element may be incorporated in the transmitter housing or remotely mounted at distances in excess of 600 m.
The ULTIMA MOS-5E user interface is menu driven. In addition the instrument may be addressed via the Dual ModBus RTU interface which is based on the RS-485 standard. The ModBus output provides status, alarm, fault and other information for operation, trouble-shooting or configuration of the unit.
HighlightsPart NumbersApprovals

RS-485 Dual ModBus Serial Interface in addition to 4-20 mA provides measurement, set-up and status of up to 247 nodes
18.5-35 VDC operation allows longer cable runs and lower cost installation
User changeable H2S range enables convenient, flexible operation
3 digit display shows over-scale readings and alarm status
Single-point calibration provides easy, fast and simple one-man calibration
Fully adjustable and configurable open collector outputs result in lower wiring cost and flexible operation
