Motor Control Center

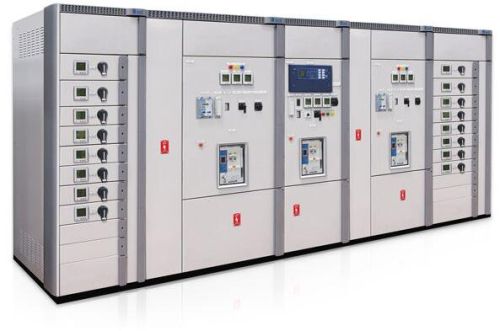

MOTOR CONTROL CENTERS – ELETRAGEAR PLUS

alfanar electric’s motor control centers are equipped with motor starters, protection devices, power feeders, and interlocking relays in a modular enclosure. They are used mainly in industrial buildings such as water pumping and treatment plants to provide a central control unit for multiple electric motors.

• Type tested assembly in accordance with IEC 61439
• Rated insulation voltage up to 1000V
• Main busbars are rated up to 6300A
• Busbar short-circuit withstand capacity up to 100kA for 1 Sec / 65KA for 3 Sec
• Neutral busbars rated up to 100% of the main busbar
• Earth busbars rated up to 100% of the Neutral busbar
• Tested for Internal Arc Fault as per IEC 61641 up to 100kA (Classified as PSC assembly providing PERSONAL and ASSEMBLY protection under arcing conditions)
• Seismically tested up to 0.75g = 8.0 Richter scale
• Fully compartmentalized design up to Form-4b separation.
• Designed for Ambient temperature up to 50 °C
• Positive interlocks to avoid accidental withdrawal of the modules during operation
• Available for indoor & outdoor applications, up to IP55
• Standard Color, RAL 7035 (other colors on request)
• Latest MCC Withdrawable technology using “IDS System”
