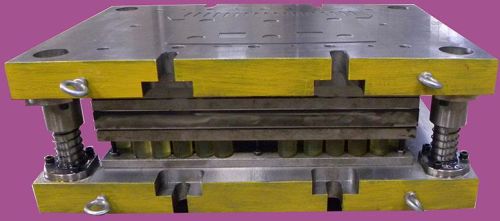

Motor Die divesified, Packaging Type : silver

We are offering motor die, punching dies.
product name: , stamping mold, progressive mold , cutting molds, forming molds , blanking dies , piecing dies with different shapes and dimensions as well as appearance.
dimension:
1. blanking die
up and down die 1123*558*70mm 2 pcs 45# steel
bottom die 885*438*20 mm 1 pc 45# steel
fix & unload plate 883*438*25 mm 3 pcs 45# steel
concave mold 885*438*40 mm 1 pc cr12mov
convex mold 810*438*40 mm 1 pc cr12mov
2. notching mold
upper die 1123*400*50mm 1 pc 45# steel
bottom die 1123*400*60mm 1 pc 45# steel
fix & gasket plates 883*219*20 mm 2 pcs 45# steel
discharge plate 883*219*25 mm 1 pc 45# steel
concave mold 883*281*40 mm 1 pc cr12mov
3. main pole die
up and down die 870*605*70mm 2 pcs 45# steel
bottom support die 630*482*20 mm 1 pc 45# steel
fix & unload plates 630*482*25 mm 3 pcs 45# steel
discharge plate 883*219*25 mm 1 pc 45# steel
concave mold 540*400*40 mm 1 pc cr12mov
convex mold 630*482*40 mm 1 pc cr12mov
4. main pole punching die
up die plate 735*325*50mm 1 pc 45# steel
bottom die plate 735*325*60mm 1 pc 45# steel
fix & support plates 535*215*20 mm 2 pcs 45# steel
discharge plate 535*215*25 mm 1 pc 45# steel
concave mold 530*210*40 mm 1 pc cr12mov
drift 260*2110*70 mm 1 pc cr12mov
art craft procedure: check and confirm the detail order requirement -calculate the cost - purchasing relative materials -processing mold plate conducting angle - drilling holes and adjusting position -vacuum heat treatment of the processed die -toughness inspection -surface treatment under equipment - dimension inspection - adjust and improve the art craft as per inspected result -assembly all parts - debugging and commissioning sample tested in line with demand - warehouse ready for shipment
characteristic: high quality dies for accurate and long applicant with different materials stipulated by users and comparative or reasonable price under strict inspection and 8-year experience to safeguard overwhelming service
advantage: die design and its processing equipment or coating system owned by ourselves, cost saving.
oem die service: as per customers’ requirement
main client: sec electric machinery co. Ltd , jac automobile, ginter gmbh co.ltd , wuxi xishan electric machinery co. Ltd ; shanghai zhongfu etc.
self-judgment: we are your best worthwhile cooperator, should there be any interest or further requirement, just feel at home to let us know , we will do our best to help you out
