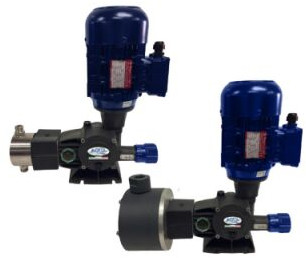

Motor Driven Pumps – High Flow Rate Version

The NEW Aqua Series of Motor Driver Dosing Pumps provide high performance, with a very precise adjustable and accurate chemical dosing. These new series have been totally developed, designed and manufactured using only the highest quality materials MADE IN ITALY and “state-of-the-art” CAD design. The 0-100% flow rate adjustment is provided by a manual stroke adjustment knob that controls the stroke length. The suction stroke is powered by a coil spring. The gearbox reducer is an endless worm and wheel type, operating in an oil bath. The drive shaft and eccentric are supported by heavy duty ball bearings.

Model

CODE DESCRIPTION

AD2528909M300000 FLOW-RATE 289 LT/H – PRESSURE BAR 9 – AMPI PVC

AD2557809M300000 FLOW-RATE 578 LT/H – PRESSURE BAR 9 – AMPI PVC

AD2555905M300000 FLOW-RATE 559 LT/H – PRESSURE BAR 5 – AMPI PVC

AD25111855M300000 FLOW-RATE 1118 LT/H – PRESSURE BAR 5 – AMPI PVC

AD2528909M100000 FLOW-RATE 289 LT/H – PRESSURE BAR 9 – AMPI AISI

AD2557809M100000 FLOW-RATE 578 LT/H – PRESSURE BAR 9 – AMPI AISI

AD2555905M100000 FLOW-RATE 559 LT/H – PRESSURE BAR 5 – AMPI AISI

AD25111855M100000 FLOW-RATE 1118 LT/H – PRESSURE BAR 5 – AMPI AISI
