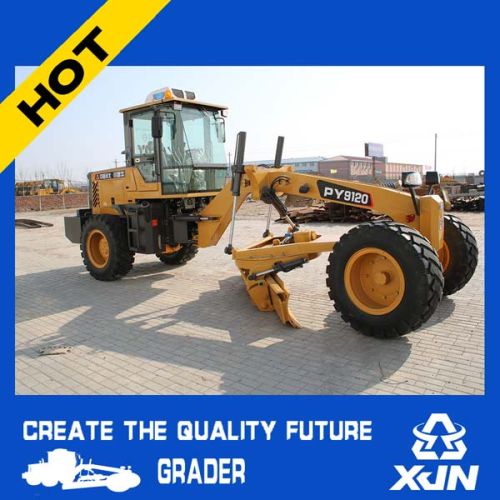

Motor Grader 120h, Brand Name : XJN

We are offering
product description
new motor grader py9120 for sale niveleuse
product specification
overall dimension
lxwxh 6900x1950x3200mm
min.ground clearance of front axle 450mm
ground clearance of rear axle 410mm
wheel tread 1590mm
wheelbase (frontrear) 4950mm
engine
band yuchai
model ycd4j22t-115
type in-line, water-cooled, four-stroke, direct injection
rated powerspeed 852400kwrpm
certified capacity 4.33l
minimum fuel consumption rate ≤220g(kw.h)
overall parameters
overall working weight 6110kg
max.swinging angle of front axle ±16°
max.steering angle of front whee ±45°
steering angle of articulated frame ±23°
cutter diameter 1250mm
cutter size (length×height×thickness) 3000×480×18mm
swing angle of blade 360°
ground clearance of blade450mm
cutting depth of blade 260mm
inclination angle of blade forward 47°backward 5°
sliding range of blade left 550mmright 550mm
transmission system
transmission type
fixed shaft power stage
torque converter single-stage single-phase three-element
gears four shifts in front & rear
tire specification 1670-24
hydraulic system
type open-type system
system pressure 16mpa
refueling capacity
fuel 90l
hydraulic oil 70l
customers can choose the front bulldozer, the middle bulldozing device, the back ripper and other appliances if they need. It can meet the diverse needs of customers.
Detailed images
packing & delivery
packing
packaging nude with tool case .1unit 1*40hq with disassembled cabin.
