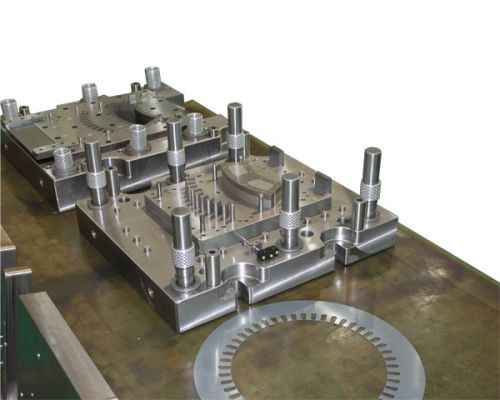

Tungsten steel KG4 Motor Iron Core Mold, Brand Name : HG

Motor iron core lamination progressive stamping die, it is a motor core lamination carbide progressive stamping die with integration of machinery and electricity. It features an accuracy of 2um, a step accuracy of 3um, matrix insert segment accuracy of 1um, dual rotation accuracy +-1, surface roughness ra0.1-0.4um, and die sets parallelism of 0.01mm1000mm.
The motor core die can be used on the high-speed stamping machine at a speed of 300-500 spm, and it is completed with a number of functions such as automatic punching, interlocking, skew slot, dividing into groups and rotation, some electronic monitor devices are equipped on the die such as air cylinder, solenoid valve and detector of mis-feeding and double thickness.
The motor iron core are brushless motor stator rotor, shaded pole motor lamination stamping die, pump motor stator rotor lamination, capacity motor stator rotor progressive die, servo motor lamination progressive die, giant slalom progressive stamping die for motor lamination.
The motor iron core is for ceiling fan, automotive generator, pump, washing machine, kitchen ventilator, juicer, microwave oven, and other about the electrical cover, electrical gear, connector, and so on.
Quality: tolerance of spare parts is within 0.002mm, tolerance of feeding length is within 0.003-0.005mm, and roughness is within ra0.04-ra0.1.
Efficiency: stamping speed reaches 300 to 1200 strokes per minute(depending on product type)
durability: single shot die life 200-600 million times(according to the material and set), a comprehensive life 1.2-2.5 million time.
The company will always keep promise the credibility of development, quality of survival, business philosophy, constantly striving for excellence in quality to meet the highest requirement of customers.
We are looking forward to serve you in the near future.
