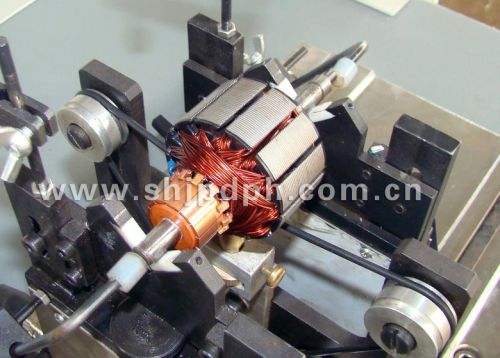

Motor Rotor Balancing Machine(dwq-5)

motor rotor balancing machine(dwq-5)
auto-positioning balancing machine is widely used in various types of micro-rotor balance correction,it is touch screen ,servo motor control ,and positioning is accurate.large screen display.a variety of positioning methods.usb date output,free stickers reflective markers
specifications parameter
maximum weight of workpiece(kg) 5
maximum diameter of workpiece(mm) 260
the distance between two bearing pedestals (mm) 40-400
journal diameter on roller carriages(mm) 3-30
belt driving diameter(mm) 20-85
rotation speed when the diameter of operating transmission is 100mm(r/min) stepless speed regulation
motor power (kw) 0.4(servo motor )
minimum achievable residual unbalance (emar)
