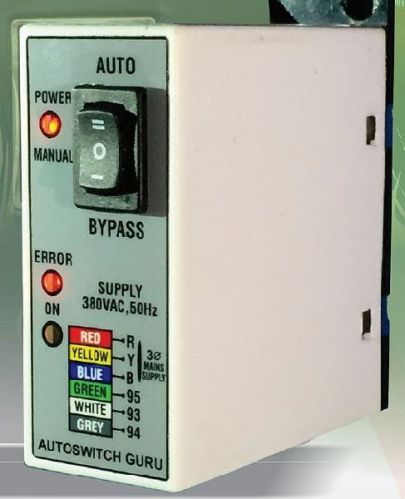

Motor Starter & Preventer

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

By employing impurities-free raw materials, our entire array of products is produced. We, as a trusted name, procure these raw materials only from reliable sources of the market. We are sprawling over a large area with exceptional warehouse, which is well-equipped with cutting-edge technology and up-to-date management systems. With automated warehouse systems, we efficiently serve the bulk requirements. Applications : For any types of Water Pumps. Auto Start for Electrical Panels. Auto Start for Compressor Motors. Auto Start for Lifts.

View More Details

Send Enquiry

Product Details

Wiring Diagram

Download Detail File : Click Here

Specification

Catalohue No	Auto Switch Guru
Suplv Voltage	3 Phase 415 VAC
Principle of Voltage	Voltage Sensing
Function Displav - Instant	Green LED on Healthy Condition
Mode of Operation	Auto / Manual / ByPass
Trip Time Delay	2 to 5 sec for Phase Unbalance , Phase Reversal & < 1 Sec for Phase Loss, Over-Voltage, Under-Voltage.
Dimension (W x H x D) mm	34 x 101 x 83
Weight	Approximate 300 Grams
Minimum Delay from OFF to ON Auto Mode	60sec .... +/- 5 sec
Pick UP Voltage	240V AC +10
Drop Out Voltage	160 V AC
Output	Relay 1 no. C./O
Contact Rating	5A at 240Vac / 1A at 415 Vac
Mechanical Life	5.5 Million Operations
Electrical Life	0.12 Million Operations
Unbalance Hvsteresis Gap	15%.
Ooeratine Temoerature	-10 C to 70 C deg.
Enclosure	Glass Filled Nylon
Terminal Capacity	2.5 Sq. mm
Trip Setting (Fixed)	SPDT . 250VAC / 5A Reslstive
Phase to Phase Unbalanced	55 VAc , +/- 5%
