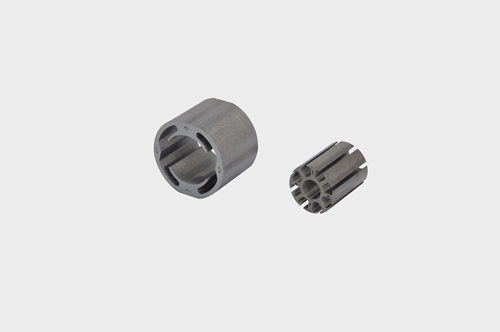

Motor Stator Lamination

Single process blanking is a stroke in the press, a single process in the mold to complete a single process stamping. The compound blanking is completed in the same stroke of the press in the same working position and two or more than two stamping processes. Progressive blanking is a plurality of stamping process of blanking, arranged in a certain order, in a press tour in the strip at different position on the die process, complete workpiece required by the process, the completion of all requirements of the process, after each stroke can get a perfect blanking, punching blanking process combined with high production efficiency than the single process, the precision level was high. The Principal Activities of Yuanzhong Custom metal stamping and stator and rotor lamination to serve the global market.   Series Excitation Motor Core 1.Product Description Product Name stator and rotor lamination Material B50A800  (Or Designated material) Application Series motor, DC motor Component stator and rotor Service OEM Packing Wooden box(Can be customized)   2. Produce show 3.Product Size Please provide drawings Specification for stator and rotor of power tools Serial number Stator Lam Dia ΦD Stator Bore Φd subtense    ab Screw hole *Hole distance Rotor Lam Dia ΦD2 Rotor Bore Φd2 Slot number D-01 41.2 25.8 39.5 25 10 8 D-03 58.5 36 52 Φ4.3*50 35.1 11.5 12 D-04 65 39 5663 Φ4.3*56 38.1 12 12 D-05 72 44 64 Φ4.5*62 43 13 12 D-07 90 5
