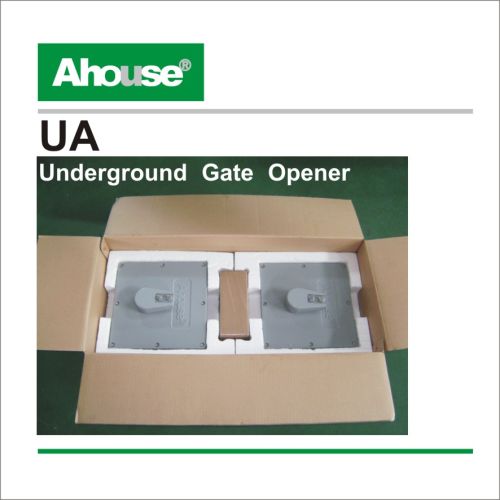

Motor Swing Gate

We are offering motor swing gate underground swing gate operator.
model: ua
operating voltage: dc 24v
max. Leaf's weight: 350 kg/ leaf
max. Leaf's length: 3.5 meter/ leaf
frame housing: aluminum alloy
opening degree: 0 to 180 degree
90 degree rotation time: 8 seconds
temperature: -25--- +50 centi-degree
ip rating : ip 67
at a glance:
the ahouse swing ua underground swing gate opener features an under-gate mounting design to provide a virtually invisible setup and wide opening arch capabilities.
gate materials - wood, steel, aluminum, vinyl, chain link, and more
push to open - yes, same requirements as pull to open
power - low voltage transformer and backup batteries (optional; not included)
solar compatible - yes
cycles per hour - continuous duty; approximately 50
packing size-33*27*74cm
normaly parts:
1>two motors
2>one control box
3>two remote controller
4>one gate lock (ds218)
optional: sensor, caution light, solar panel, backup battery
product description:
the ahouse swing ua underground swing gate opener meets the highest standards in safety. The ahouse swing ua exceeds iso 9001 regulations, which require testing on 100% of all products being produced in a single factory, and all the parts of this invisible gate opener are made in one factory. The diligent observation of safety standards ensures that this invisible gate opener not only meets safety requirements, but also offers superior quality.
the ahosue swing ua also offers convenient operation options. The low voltage system eliminates the need to run 220 ac to the electric gate; a low voltage wire that plugs into a household outlet within 100 of the automated gate operator is sufficient. Power is drawn directly from the 24 v transformer, so this invisible gate opener is capable of constant duty; this means that it can run many cycles consecutively without draining a battery (since the optional batteries are only backup). Also, the ahouse is also compatible with a variety of accessories.
this invisible gate opener is designed to accommodate those homeowners who desire the most appealing entryway or have limited space for setback requirements. Because it operates underneath the gate, it is nearly invisible and does not require a setback.
features:
large opening arch capabilities - the ahouse is able to open driveway security gates up to 180 degrees, well beyond most other electric gate openers.
large, 24v motor - it is one of the largest swing gate motors available for any residential electric gate opener. It is capable of handling electric security gates up to 350kg, which more than many heavily ornamented gates weigh.
control board, easy read diagnostics - the led light diagnostic on the control board permits easy diagnostics of problems or missing connections.
