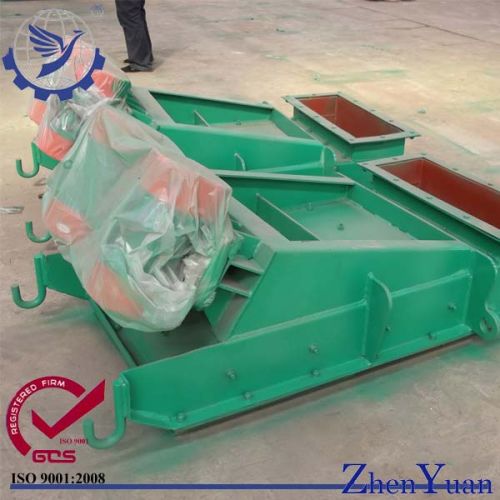

Motor Vibrating Pan Feeder

We have ZYM Motor Vibrating pan feeder
Motor Vibrating pan feeder ----
MZG Motor Vibrating pan feeder is a kind of linear direction feeding equipment. It features smooth vibrating, reliable operation, long service life and being suitable for feeding. They are widely used in mining, building-material, silicate and chemical industry in the crushing and screening plants.
In the Sand-Stone production line, it can send materials to crusher evenly and continuously and at the same time, it can screen materials roughly. It can be used in these areas such as metallurgical industry, coal mining industry, mining-selecting, building, chemical and grinding industry, etc.
Motor Vibrating pan feeder Features:
� vibration motor or general motor drive the vibrator is used as the vibration source
� small volume and light weight, simple structure, easy to install, operate and maintain.
� low energy consumption
� NO POLLUTION
Technical Parameters:
Model MZG-50 MZG-70 MZG-90 MZG-110 MZG-130 MZG-150 MZG-170 MZG-180
Feeding Through
Size() L(mm) 1400 1600 1800 1800 1800 1800 2200 2200
W(mm) 500 700 900 1100 1300 1500 1700 1800
Feeding Grain size(mm) 0-150 0-200 0-300 0-300 0-300 0-300 0-300 0-300
Installation Angle(°) 5-15 5-15 5-15 5-15 5-15 5-15 5-15 5-15
Double Amplitude(mm) 6-12 6-12 6-12 6-12 6-10 6-10 6-10 6-10
Capacity(t/h) Coal ---- ---- 100-200 220-450 300-600 450-900 680-1300 750-1500
Motor
Model YZS-10-6 YZS-15-6 YZS-20-6 YZS-30-6 YZS-30-6 YZS-50-6 YZS-50-6 YZS-50-6
Rev(r/min) 960 960 960 960 960 960 960 960
Power(KW) 2�0.75 2�1.1 2�1.5 2�2.2 2�2.2 2�3.7 2�3.7 2�3.7
Inlet Dimension(mm) 600�400 600�600 800�800 1000�1000 1000�1200 1200�1400 1400�1600 1400�1700
