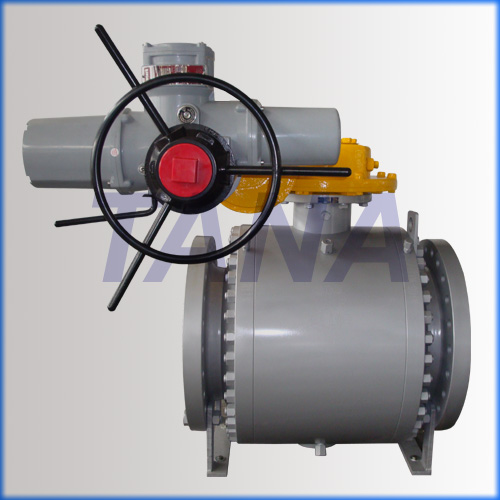

Carbon steel Motorized Ball Valve

We are offering motorized ball valve.
quick details
standard or nonstandard:standard
structure:ball
pressure:medium pressure
power:manual
material:casting
temperature of media:medium temperature
media:water,oil,gas
port size:2~48inch
place of origin:zhejiang, china (mainland)
model number:q947f
brand name:tana
end connection:rtj,rf flange
certificate:api6d
certifcate-1:ce
packaging & delivery
packaging details: plywood case
delivery detail: as soon as possible
specifications
motorized ball valvetrunnion mounted ball,2pcs/3pcs split bodysize:2"-48" or dn50-dn1200pressure: class150~2500lb
motorized ball valve
design features
full port or reduced port trunnion mounted ball blowout-proof stem double block & bleed emergency sealant injection cavity pressure self relief fire safe design to api 607 / api 6fa anti-static to bs 5351
technical specification
size:2"-48" or dn50-dn1200
pressure: class150-2500lb or pn16-pn250 or 10k-100k
material:wcb,lcb,cf8,cf8m,cf3,cf3m,wc6,wc9 etc.
design & manufacture std.: api608, asme b16.34, api6d, bs5351
face to face std.: asmeb16.10 ,jisb2002,api 6d, din3202, asme b16.25
end connection std.: asme b16.5,asme b16.47, jisb2212-jisb2214, din2543-2550,asme b16.34
test standard: iso5208, api598 ,jisb2003, api 6d, bs 6755
structure type: two-piece, three-piece,reduced bore
operated way: electric actuator, offer many brands such as df,auma,bernard,rotork etc.
manufacturing to nace mr-01-75 on request.
tana will provide you satisfying price, quality and service.
provide co,fa,fb,fe,ff,fn,fp,fx etc. Certificates as per customer’s requirement.
