Motorized Operated Carrier Switch

Get Latest Price

Gear Ratio 03/01/12
Slant Angle of Tough Pulley 41° max.
Positioner Non Contact type, with operation status indicator lamp
Speed 197/ 236 mm/min. (50/60 Hz)
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

Toshniwal Industries Pvt. Ltd.

Makhupura, Ajmer, Rajasthan

View Number

Member Since 15 Years
Nature of Business Retailer
Year of Establishment 1959

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Force 1.76 kN (180 kgf)
Trough Angle* 20° , 30° ,45°
Potentiometer For Position feedback (1 kΩ)
Enclosure IP67
Connection Cable 5-Core CW (Control- use, vinyl- insulated, vinyl- sheathed) cable : 1.25 mm2 X 5m
Space Heater 20W, 7 kΩ (for prevention of internal condebsation)
Position Limit Switches One each for forward limit and backward limit
Item Specification
Power Consumption 65W
Position Limit Switch Set angle : 3°
Operating Time 36/30s (50/ 60Hz) (with normal strok
Slant Angle of Tough Pulley 41° max.
Max. Operating Angle ± 10°
Allowable Temperature -10° C to 50° C
Thermal Relay With thermal trip contact signal
Applicable Conveyor Belt Width 500mm to 2000 mm
Enclosure IP55
Supports Trunnions
Gear Ratio 03/01/12
Item Specification
Potentiometer For detection of conveyor sway angle (1kÎ)
Applicable Conveyor Belt Speed 250 m/ min.max,
Stroke 118 mm for normal operation
Power Supply 200V (100V) 50/60 Hz
Item Specifications
Allowable Temperature -10°C to 50°C
Speed 197/ 236 mm/min. (50/60 Hz)
Positioner Non Contact type, with operation status indicator lamp

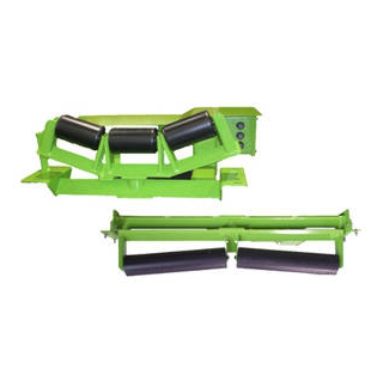

Motor-operated Adjusting Carrier is a belt sway correction equipment controlled by servo-system, and consists of a belt sway detector, motor actuator and adjusting carrier. The Motor-operated Adjusting Carrier is widely used in order to prevent belt breakage and load-falling caused by the sway of conveyor belt. Types to mount the carrier side and the return side are available. Besides, types for use with reversing- operation conveyors are available.
