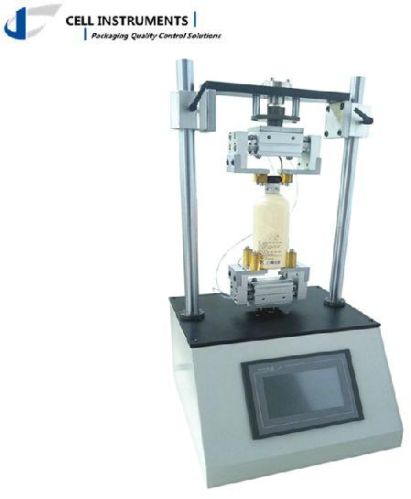

Motorized Torque Tester, Brand Name : Cell Instruments

Motorized torque tester is for the locking and opening force test of bottle caps, push and twist caps, child resistant closures, lids and tubes. It can be operated in clockwise and counter-clockwise directions.
Features
1. plc control unit and touch screen operation
2. both locking and opening force can be measured
3. static and rotatory torque measuring up to 10 n.m.
4. test parameter and data storage
5. automatic rotating
6. micro-printer
7. rs232 port and professional software
technical data
test range: 10 nm
accuracy: 1% fs
clamp range: 15mm-140mm
speed range: 0.01～15rpm
dimension: 340×430×750 mm
standards:
astm d2063, astm d3198, astm d3474, din en 12377
bottle caps, push & twist caps, child resistant closures, lids and tubes
