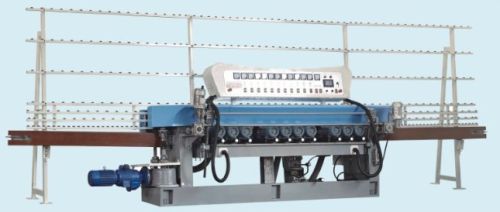

Motors Glass Beveling Machine

We are offering motors glass beveling machine etc. The processing speed can be adjusted easily by the stepless variator .glass is transmitted by the conveyor belt. The back chain plate adopts forging technique to thicken the steel plate, through heat treatment with special technique, enable the products with good rigidity, high hardness, more anti-abrading performance.
9 motors glass beveling machine technical parameter
model# vxm261a
min.glass size:100*100mm
range of speed700mm-3600mm/min
glass thickness3-12mm
bevel angle3°-20°
max.bevel width 30mm
total power21kw
base dimension(l×w×h)6500×1200×2500mm
total weight3500kgf
