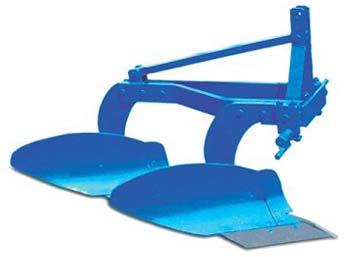

Mould Board Plough

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Mould Board Plough that we offer has special wear-resistant steel bottoms with bar point for toughest ploughing jobs. Its bar point bottom ensures longer life as it can be extended or reversed and re-used till the last possible length. The under-frame and unit -to-unit clearance of Mould Board Plough are adequate to cope with trashy conditions. By supplying technologically advanced products, we have become one of the leading Manufacturers, Exporters and Suppliers of Mould Board Plough from Gujarat, India.

View More Details

Send Enquiry

Specifications

Particulas	2 FURROW	3 FURROW
Frame	- 65x65x8mm Box &	65x65x8mmBox&
	50 mm round	50 mm round
Tyne	32 mm Profile Cut single Piece	32 mm Profile Cut single Piece
Length (L)	1300 mm	1880 mm
Width (N)	738 mm	738 mm
Height	1066 mm	1066 mm
Blade	10 mm	10 mm
Mould Board	8 mm	8 mm
Shovel	40x25 mm Bar (EN-42 Forged)	40x25 mm Bar (EN-42 Forged)
3 Point Linkage	65x16 mm flat & 31 mm Square	65x16 mm flat & 31 mm Square
Clamp	125x50 mm	125x50 mm
Width Of Cut (B)	610 mm (max)	910 mm (max)
Depth Of Cut	350 mm (max)	350 mm (max)
Weigth	220 Kg. (approx)	350 Kg. (approx)
Power Required (HP)	30-40	55-60
