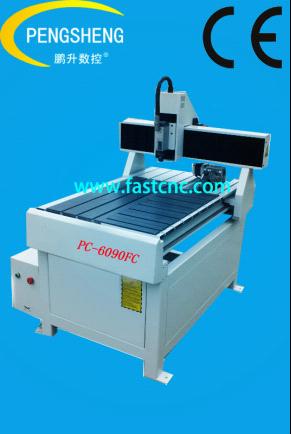

Mould Engraving Machine

MOQ1 Piece(s)
Z working area >80mm
X.Y working area 600mm*900mm
Interface USB
4th rotary axis diameter<50mm
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Company Information

Member Since 13 Years
Nature of Business Supplier
Year of Establishment 2001

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Resolution 0.01mm
X,Y ,Z structure Imported ball screw
Spindle power 1.5kw
Drive MotorStepper
Max speed 10m/min
Diameter of cutter 3.175-8
X.Y working area 600mm*900mm
Command G code*.u00*.mmg*plt
Operating system DSP(with separate operation cabinet)
Working voltage AC220V/50/60 Hz ,2PH
Spindle rotating speed0-18000r/min
4th rotary axis diameter<50mm
Z working area >80mm
Work-holding By clamp
Interface USB
Cooling mode Water cooling/Air cooling
Flash Memory 128M
Table size 750mm*1200mm

We are offering mould engraving machine with high precision.
1.â â â whole machine is welded with seamless steel structure,the stability is excellent, not easy to be deformed.
2.â â â the spindle equipment is the first brand of the world, 1 kw italy hsd air cooling spindle.
3.â â â the machine adopts gantry movement,it can process any kinds of materials freely.
4.â â â has the 4th rotary which is used fou engraving cylinder work piece.
5.â â â three axes adopt imported ball screw and taiwan square orbit,stable working,high precision and long life time.
6.â â â x ,z axes are dustproof.it makes sure the steady working performance of the machine for long-term using.
7.â â â adopting advanced dsp system with usb connection,operated with the handle,convenient operation.our engaber can completely work off-line and do not take any computer resources.
8.â â â well compatibility:cad/cam designing software e.g.
type3/artcam/castmate/wentai etc.
9.â â â has the function of forecasting process time.
10. High precision,the curving and linear speeds are consistent.adopting excellent parts makes the fault rate to be the lowest one.
