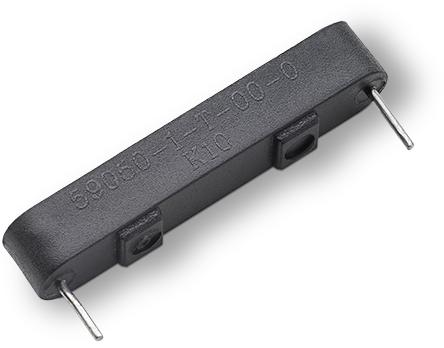

Mount Overmolded Reed Switch

Littelfuse Reed Switches 59050 datasheet
Order Sample
A small, PCB mount reed switch 22.86mm x 6.73mm x 4.57mm (0.900" x 0.265" x 0.180") with a choice of normally open, normally closed or changeover contacts. Contains molded stand-offs to allow board washing. Available with customer-defined sensitivity. Capable of switching up to 265Vac300Vdc at 10VA. Available with a range of sensitivity options. Well suited for position and limit sensing, security, door and window alarm systems. Functions best with the 57050 actuator.
Note: The 57050 actuator is sold separately.
Features:
Molded stand-offs to allow board washing
Hermetically sealed contacts
Customer-defined sensitivitySuitable for mounting directly onto printed circuit boards
Well suited for usage in high-moisture and contaminated environments
Excellent for switching micro-controller logic level loads
Applications:
Position and limit switching
Security
