JURADO Mouse Als Clinching System, For Industrial

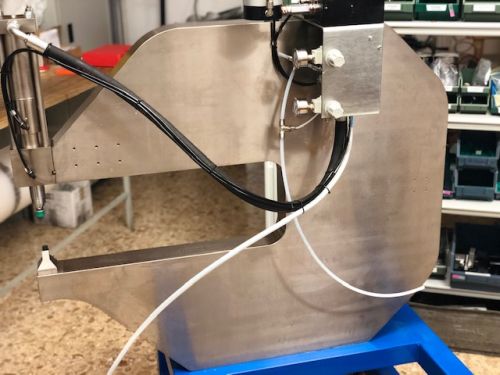

The MOUSE ALS system is composed by a metallic C frame with a hydraulic piston and a low pressure safe approach system. The operator will work with a double pedal in order to activate the low pressure approach for first and then to execute the clinching using a round or trapezoidal point. The machine is supplied including a weight support, a pressure multiplier and a pedal gauge. According to the customer’s need, the C-frame structure can be supplied with different depth of the throat.

• Technical Description

• Work stroke: 6 mm
• Low pressure approach 50 o 100 mm
• Thrust: 35 o 50 kN

The equipment is supplied complete with clamp, handle, high pressure hydraulic hose, pressure multiplier – BOOSTER
Booster or multiplier of air pressure Our pressure multiplier is made up of a hydro-cylinder which by using compressed air (installed in each unit) increases the pressure of the oil in the same site by a factor of 60 (e.g. for 1 bar of pressurized air you can achieve 60 bars of oil, so for a standard pressure of just 6 bar you can obtain 360 bar of compressed oil). Jurado Tools has designed the system is for an optimum power supply for the clamps and therefore for the joining of metal plates. The amount of force and power used in the clamps can be adjusted on the booster. How this is done is described in the instructions for use which are supplied with every purchased cold welding machine. Our multiplier can be customized for each customer according to their needs, in regard to both the power and the volume of oil that is compressed. Our multipliers replace the old hydraulic power packs which has important economical and enviromental advantages. Not only are they safer and easier to use, but also lighter.
