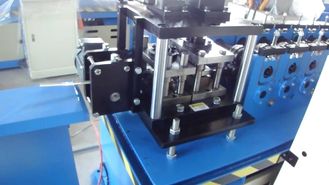

Mouth Ring Roll Forming Machine, Brand Name : Believe Industry

We are offering mouth ring roll forming machine.
Description:
according to specific requirements of customers, we can manufacture mouth ring roll forming machines with different specifications. Main components of this machine include decoiler, roll former, cutter, hydraulic pump station, product table, and control cabinet, etc.
technical parameters - mouth ring roll forming machine
raw material carbon steel, galvanized steel, q235
material thickness 0.3-0.4mm
material width depend on specific profile
diameter of shaft 60mm
material of shaft 45# steel
material of rolls
45# steel over quenching hrc 58-62°
main power 3kw
forming speed 8-12mmin
forming station 6 stations
cutting type hydraulic cutting
cutting blade
cr12 mov
