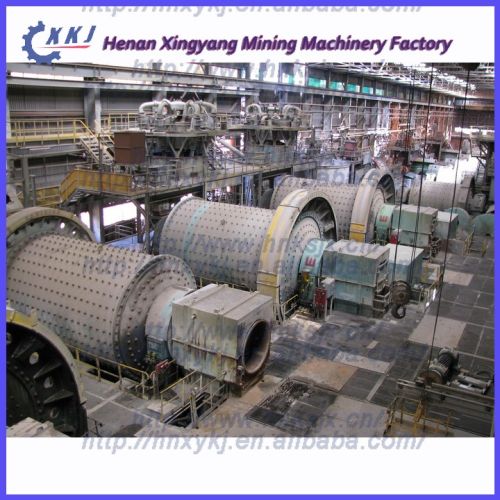

Mqg1830x5400 Cemtn Ball Mill Machine, Brand Name : XKJ

We are offering mqg1830x5400 cemtn ball mill machine with capacity 5-25 t/h.
mqg1830x5400 ball mill machine (5-25 t/h)
where?
mineral mill is widely used in cement, silicate products, new building materials, refractory materials, fertilizer, ferrous and nonferrous metal and glass ceramics and other mineral production industries
mineral mill features:
1. The hollow axis adopts the cast steel and the lining can be replaced.
2. The barrel body is inlaid with wearable plates;
3. The ball roller mill machine runs steadily and efficiently;
4. The big rotary gear is forged from cast rolling gears.
model shell capacity (t/h) motor power (kw) weight (t)
diameter (mm) length (mm) speed (r/min)
mx2295 2200 9500 21.4 14-15 475 68.2
mx22110 2200 11000 21.4 15.1-16.1 570 85.6
mx24110 2400 11000 21.68 20.6-22.7 630 108
mx24130 2400 13000 19.4 21.6-23.8 800 121
mx26130 2600 13000 19.7 24.6-27.1 1000 169.8
mx3090 3000 9000 18.7 26.6-28.5 1000 161
mx30110 3000 11000 18.7 28.6-32.8 1250 183.5
mx30130 3000 13000 18.7 33-36 1250 199.5
mx32120 3200 12000 17.8 31.8-38.2 1400 213
