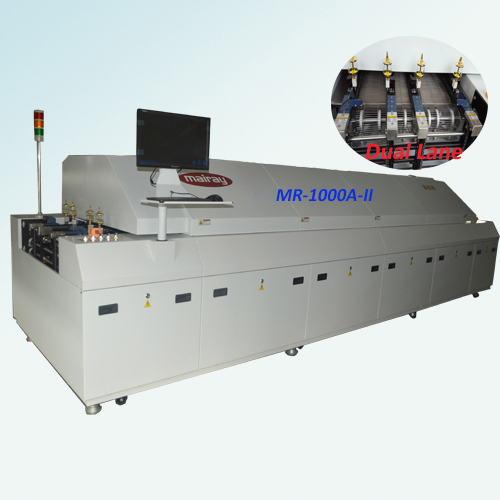

Mr-1000a LED Strip Light Smt Reflow Soldering Oven Machine

We are offering led strip light.
Outside dimension(l*w*h) l6160*w1550*h1520mm
weight 2350kg
number of heating zones up8bottom8
cooling zone up2bottom2(enforced cooling)
heating zones length 3891mm
electric supply required 3phase,380v 5060hz (option: 3phase,220v 5060hz)
power for warm up 35kw
power consumption 10kw
warming time approx.20 minute
temp. Setting range room temp. --- 300℃
control system pc+plc
temperature control precision ± 1.0℃
heating element especial heating elements for long life
commutated element aluminium alloy plate
abnormal alarm abnormal temperature (extra-high extra-low temp.)
board dropped alarm yellow–warming; green-normal; red-abnormal
lane quantity 1
max.width of pcb 300mm300mm
components height top bottom height of pcb is 25mm
converyor direction l to r; r to l
fixed rail side front rail fixed(option:rear rail fixed)
pcb transmission agent "air-reflow = chain + mesh ,
n2-reflow=chain(mesh is option)"
center support(optional) "prevent pcb get deformed due to pcb too wide
or component too heavy"
converyor height 900+-20mm
converyor speed range 300～2000mmmin
lubrication auto-afflux standard
temp. Thermocouple slot standard
driven top hood opening standard
cooling method forced-air (standard), water-chiller (option)
