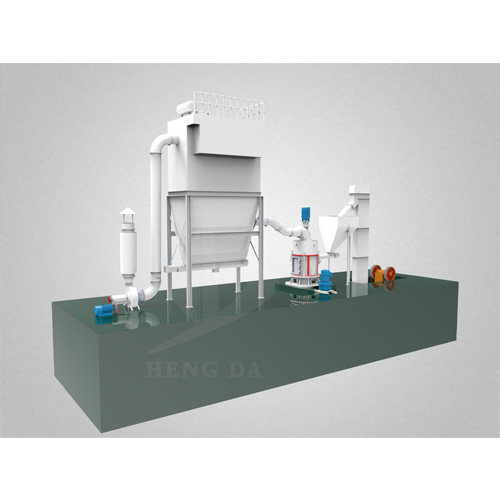

MR100 Micro Powder Gypsum Grinding Mill, Brand Name : Hengda

MR 100 Specifications:
Input size: 10mm
Final product size: 325-1500mesh
Main motor: D97kw
Capacity: 0.5-3.2th
Total weight: 15ton
Power: 120kw
Dimension: 10*5*8m
Main features:
1.Wide range of processing materials, so far, it is the special equipment used for processing the mental ores material of 325- 1500 meshes in domestic
2.Low cost of spare parts is less, the cost is about 10% of the ring roll grinders
3.It is easy to maintain, service, replace, repair the vulnerable parts, the time of repair is just half day
4.The Power consumption is low while the produce is high, pollution-free, Efficient pulse dust remove is adopted, and there is no dust pollution during whole processing, and Quieter room is equipped to reduce the noise pollution
5.the quality of the powder is high with concentrated size, and powder being on average, and high content of micro powder
The grinding principle of main machine
When materials fed by the belt conveyer with quantify, and then equably send to the sealed grinding chamber of host for grind. The material is, then in the grinding chamber the material is transferred into the material layer formed between the grinding wheel and The grinding body, the material is grinded in the grinding body by the grind wheel with positive pressure and  rotation.
