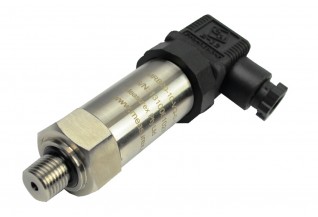

(MRB20) General Purpose Pressure Transmitter Supported by an advanced transit system, we have become capable of delivering the orders within promised time. Due to our commitment towards providing quality approved products to the clients, we source the raw materials only from the well-known and trusted vendors of the market.
Features : High Measuring Accuracy Pressure Measurement Range of -1 to 600bar Compact and Rugged Model Wide Range of Media Compatibility Low Static and Thermal Errors Reverse polarity and transient current protected
Applications : Production machinery Hydrology research Data logging Machine tool control Air conditioning Agricultural equipment Open cut mining Hydro-static level control Hydraulic pumps Compressed air line
| Technology | Piezo resistive |
|---|---|
| Type | Pressure Transmitter |
| Standard Measurement Range (bar) | [-1/0], [-0.2/+0.2], 0.2, 0.5, 1, 2, 4, 6, 8, 10, 12, 15, 16, 20, 35, 50, 100, 200, 350, 600, Other non standard range |
| Purpose and Application | General Purpose, Corrosive Media, High Accuracy |
| Accuracy (combined LRH) | 0.1% FS, 0.25% FS, 0.5% FS |
| Output Signal | 4-20mA, 0-20mA, 0-5VDC, 0-10VDC, -10 to 10VDC, 1-5VDC |
| Pressure Reference | Abs.: Absolute (0 at vacuum), SG: Sealed Gauge (0 at 1bar), VG: Vented Gauge (0 at atmospheric pressure) |
| Process Connection | G1/4(¼" BSPP male), G1/2(½" BSPP male), R1/4(¼" BSPT male) , NPT1/4(¼" NPT male) , Others |
| Electric Connection | 3m cable, 10m cable, DIN 43650 connector, Others |
| Protection Level | IP65, IP67, IP68 (with cable connection) |
| Overload Rating | 1.5 |
| Long Term Stability | <0.2% FS/year |
| Diaphragm Material | Stainless Steel 316L, Hastelloy, Titanium, Tantalum |
| Compensated Temp. Range | 0 to 70oC |
| Operating Temp. Range | -30 to +80oC |
| Temp. Coefficient of Zero | 0.02% FS /oC |
| Temp. Coefficient of Span | 0.02% FS /oC |
| Input Resistance | No |
| Output Resistance | No |
| Insulation resistance | 100MΩ @ 50VDC |
| Zero offset | N/A |
