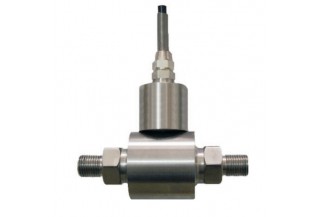

(MRD22) Differential Pressure Transducer Keeping it completely confidential, we make certain that the payments made by you are through the leading technology. Apart from the offline transactions, we also support options like credit card, debit card, smart card, e-money, thus, you can opt these options as well. Reckoned as outstanding suppliers of (MRD22) Differential Pressure Transducer; we are a reliable choice amidst the customers.
Features : High Measuring Accuracy Differential Pressure Measurement Range of 0.2 to 35bar Compact and Rugged Model Wide Range of Media Compatibility Low Static and Thermal Errors
Applications : Hydraulic systems Pump controls Pneumatic systems Manufacturing process controls Fire control systems Manufacturing automation Hydrology research Hydro balancing systems
| Technology | Piezo resistive |
|---|---|
| Type | Pressure Transducer |
| Standard Measurement Range (bar) | 0.2, 0.5, 1, 2, 5, 10, 20, 35 |
| Purpose and Application | General Purpose |
| Accuracy (combined LRH) | 0.25% FS, 0.5% FS |
| Output Signal | ~ 70mV |
| Pressure Reference | Dif.: Differential |
| Process Connection | G1/4(¼" BSPP male), R1/4(¼" BSPT male) , NPT1/4(¼" NPT male) , Others |
| Electric Connection | 3m cable, DIN 43650 connector, Others |
| Protection Level | IP65, IP68 (with cable connection) |
| Overload Rating | 2 |
| Long Term Stability | <0.2% FS/year |
| Diaphragm Material | Stainless Steel 316L |
| Compensated Temp. Range | 0 to 60oC |
| Operating Temp. Range | -30 to +80oC |
| Temp. Coefficient of Zero | 0.03% FS /oC |
| Temp. Coefficient of Span | 0.02% FS /oC |
| Input Resistance | N/A |
| Output Resistance | N/A |
| Insulation resistance | 100MΩ @ 50VDC |
| Zero offset | ≤ ±3mV |
