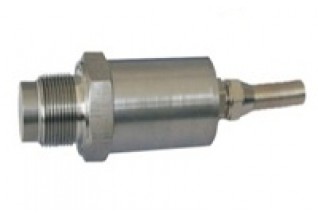

(MRG23) Flush Diaphragm Strain Gauge Pressure Transducer We are appreciated amidst the celebrated names in the sphere of providing exclusive range that includes (MRG23) Flush Diaphragm Strain Gauge Pressure Transducer. We are trusted for the timely delivery of orders as we are assisted by the modern transportation facilities.
Features : Flush Diaphragm Model Sanitary Fitting Available High Measuring Accuracy Pressure Measurement Range of 0-20 to 700bar Compact and Rugged Model Wide Range of Media Compatibility Low Static and Thermal Errors
Applications : Mining industry Beverage machineries Data logging Pharmaceutical applications Agricultural equipment Industrial process control Compressed air line
| Technology | Strain Gauge |
|---|---|
| Type | Pressure Transducer |
| Standard Measurement Range (bar) | 20, 50, 100, 200, 400, 500, 600 |
| Purpose and Application | Flush Diaphragm |
| Accuracy (combined LRH) | 0.1% FS, 0.25% FS, 0.5% FS |
| Output Signal | 1.5mV/V, 2mV/V |
| Pressure Reference | SG: Sealed Gauge (0 at 1bar) |
| Process Connection | R1/2(½”BSPT male), G1/2(½" BSPP male), Others |
| Electric Connection | 3m cable, DIN 43650 connector |
| Protection Level | IP65, IP68 (with cable connection) |
| Overload Rating | 1.5 |
| Long Term Stability | <0.2% FS/year |
| Diaphragm Material | Stainless Steel |
| Compensated Temp. Range | -10 to 60oC |
| Operating Temp. Range | -20 to +80oC |
| Temp. Coefficient of Zero | 0.03% FS /oC |
| Temp. Coefficient of Span | 0.03% FS /oC |
| Input Resistance | N/A |
| Output Resistance | N/A |
| Insulation resistance | 100MΩ @ 50VDC |
| Zero offset | <±2% FS |
