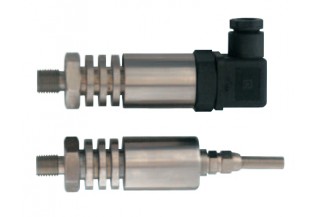

(MRQ21) High Temperature Pressure Transmitter Backed by an efficient network and trustworthy resources, we have emerged as a dominant supplier of (MRQ21) High Temperature Pressure Transmitter in the market. Working with a pool of professionals, we are offering excellent quality product from Melbourne(Australia).
Features : High Temperature Media (up to 175oC) Pressure Measurement Range of -1 to 1000bar Compact and Rugged Model Wide Range of Media Compatibility Low Static and Thermal Errors Reverse polarity and transient current protected
Applications : Petro-chemical industries Chemical industries Food industries Aerospace industries Research applications Power plants
| Technology | No |
|---|---|
| Type | Pressure Transmitter |
| Standard Measurement Range (bar) | [-1/0], 1, 2, 5, 10, 20, 50, 100, 200, 400, 600, 800, 1000, Other non standard range |
| Purpose and Application | General Purpose, High Temperature |
| Accuracy (combined LRH) | 0.25% FS, 0.5% FS |
| Output Signal | 4-20mA |
| Pressure Reference | Abs.: Absolute (0 at vacuum), SG: Sealed Gauge (0 at 1bar) |
| Process Connection | G1/2(½" BSPP male) |
| Electric Connection | Check product data sheet |
| Protection Level | IP67, IP68 (with cable connection) |
| Overload Rating | 2 |
| Long Term Stability | No |
| Diaphragm Material | Stainless Steel 316L |
| Compensated Temp. Range | -10 to 70oC |
| Operating Temp. Range | No |
| Temp. Coefficient of Zero | 0.025% FS /oC |
| Temp. Coefficient of Span | 0.025% FS /oC |
| Input Resistance | N/A |
| Output Resistance | N/A |
| Insulation resistance | 100MΩ @ 50VDC |
| Zero offset | N/A |
