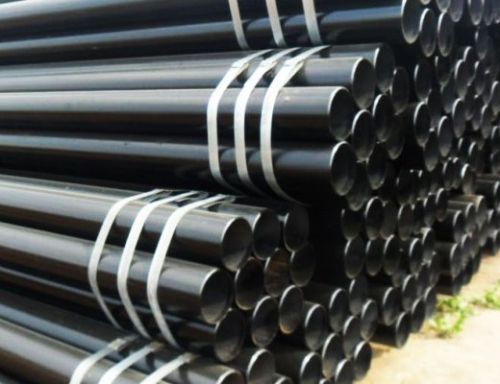

MS Black Round Tubes

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Applications Liquid Tranmission Idlers Mechanical and General Engineering Structural Water adn Sewage Wate Wells Fire Protections Fencing Black (Self Colored Uncoated) Outside Protective Coating-oil/Varnish Hot Dip

View More Details

Send Enquiry

Company Information

KrishnaKripa Tubes Pvt. Ltd.

Vishwakarma Industrial Area, Jaipur, Rajasthan

View Number

Member Since 7 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Tolerance

A- Thickness	Tolerance	B-Weight	Tolerance	Length Tolerance
1. Light tubes 2. Medium & Heavy Tubes	+ Not limited -8% + not limited -10%	1. Single Tube (Light Series) 2. Single Tube (Medium & Heavy Series) 3. For quantities per load of 10 tonnes minimum (Light Series) 4. For quantities per load of 10 tonnes minimum (Medium and Heavy Series)	+ 10% -8% + 10% + 7.5% - 5% +7.5%	Unless otherwise Specified 4 to 7 mtrs. Can also be supplied in Fix Lengths +5cm.

TECHNICAL DATA OF BLACK & GALVANISED STEEL TUBES AS PER IS:1239
As Per IS - 1239 (Part-1) / BS : 1387/1985

NB and Series		Outside Diameter		Wall Thikness		Nominal Weight
NB and Series		Min.	Max	Wall Thikness		Plain End		Screwed & Socketed
		mm	mm	mm	SWG	Kg/M	Meters/Tones	Kg/M	Meters/Tonne
15	L	21.0	21.4	2.0	14.0	0.95	1052.0	0.96	1046.0
	M	21.0	21.8	2.6	12.0	1.21	826.0	1.22	820.0
	H	21.0	21.8	3.2	10.0	1.44	694.0	1.45	690.0
20	L	26.4	26.9	2.3	13.0	1.38	7125.0	1.39	719.0
	M	26.5	27.3	2.6	12.0	1.56	641.0	1.57	637.0
	H	26.5	27.3	3.2	10.0	1.87	535.0	1.88	532.0
25	L	33.2	33.8	2.6	12.0	1.98	505.0	2.00	500.0
	M	33.3	34.2	3.2	10.0	2.41	415.0	2.43	411.5
	H	33.3	34.2	4.0	8.0	2.93	341.0	2.95	339.0
32	L	41.9	42.5	2.6	12.0	2.54	394.0	2.57	389.0
	M	42.0	42.9	3.2	10.0	3.10	322.0	3.13	319.0
	H	42.0	42.9	4.0	8.0	3.79	264.0	3.82	262.0
40	L	47.8	48.4	2.9	11.0	3.23	310.0	3.27	306.0
	M	47.8	48.8	3.2	10.0	3.56	281.0	3.60	278.0
	H	47.9	48.8	4.0	8.0	4.37	229.0	4.41	227.0
50	L	59.6	60.2	2.9	11.0	4.08	245.0	4.15	241.0
	M	59.7	60.8	3.6	9.0	5.03	199.0	5.10	196.0
	H	59.7	60.8	4.5	7.0	6.19	161.0	6.26	160.0
60	L	75.2	76.0	3.2	10.0	5.74	175.0	5.83	171.5
	M	75.3	76.6	3.6	9.0	6.42	156.0	6.54	153.0
	H	75.3	76.6	4.5	7.0	7.93	126.0	8.05	124.0
80	L	87.9	88.7	3.2	10.0	6.72	149.0	6.89	145.0
	M	88.0	89.5	4.0	8.0	8.36	120.0	8.53	117.0
	H	88.0	89.5	4.8	6.0	9.90	101.0	10.10	96.0
100	L	113.0	113.9	3.6	9.0	9.75	102.0	10.00	100.0
	M	113.1	115.0	4.5	7.0	12.20	82.0	12.50	8.0
	H	113.1	115.0	5.4	5.0	14.50	69.0	14.80	67.5
125	M	138.5	140.8	4.8	6.0	15.90	63.0	16.40	61.0
125	H	138.5	140.8	5.4	5.0	17.90	56.0	18.40	54.0
150	M	163.9	165.5	4.8	6.0	18.90	53.0	19.50	51.0
150	H	163.9	166.5	5.4	5.0	21.30	47.0	21.90	46.0
