MS I Beams

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

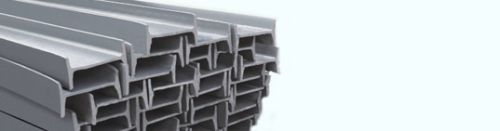

Mahavir Steel supplies a wide range of Mild Steel (MS) I Beams. MS I Beams are used for manufacturing of truck-trailers, EOT cranes and its Gantry, ship building, factory sheds, conveyors, boilers,....

View More Details

Send Enquiry

Company Information

Mahavir Steel Industries Limited

Masjid Bunder, Mumbai, Maharashtra

View Number

Member Since 11 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

MS Beams : 100 x 50mm to 200 x 100mm (Light Wt. /Med. Wt. /STD .Wt.)

Chemical compositions & Mechanical properties

The data given above is indicative. Actual weights may vary.

MAHAVIR STEEL INDUSTRIES developes specific sections. Specific sizes in any section can be developed for economical and feasible quantity, in Mild Steel, High Tensile, En 8 / En 8D / EN 9 / EN 16 material.

Size in mm	Average Weight
Size in mm	KG/MTR	KG/FT
100 x 50 STD	8.90	2.70
100 x 50 MED	7.00	2.10
100 x 50 LIGHT	5.30	1.60
125 x 70 STD	13.30	4.05
125 x 70 MED	11.50	3.50
125 x 70 LIGHT	9.00	2.70
150 x 75 STD	15.00	4.60
150 x 75 LIGHT	13.50	4.10
175 x 85	19.6	6.0
200 x 100	24.20	7.40

Rolling Tolerances

Web	Flange	Sectional weight	Length
up to 200 mm +3 mm / -2 mm above 200 mm ± 3 mm	up to 100 mm ± 2 mm 100 to 125 mm ± 2.5 mm 125 to 250 mm ± 4 mm	± 2.5 %	For fixed length : ± 100 mm
