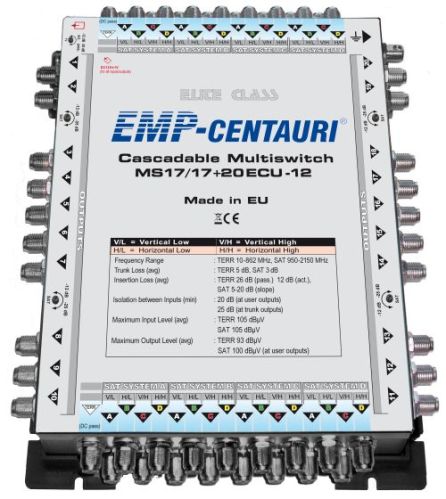

17in/17out+20 compact cascadable multiswitch for distribution terrestrial and satellite signals from 4 satellite positions (16 polarities) to 20 users. The multiswitch is DC supplied from connected satellite receivers, 2.1 socket for external power is connected to all satellite trunk lines. DC power is present at the TERR line, avoid short circuit! Using a rotary trimmer it is possible to switch terrestrial band fromactive to passive mode. The loss at user outputs in satellite band is adjustable by another rotary trimmer in the range 5-20dB. The attenuation at the outputs can be set by means of the trimmer together for each five outputs.
Parameter | Condition | Value |
|---|---|---|
Frequency range | Sat. trunks | 950-2150 MHz |
Terr. trunk | 20-862 MHz | |
User outputs | 20-2150 MHz | |
Control |
| 13/18 V + 0/22 kHz + DiSEqC |
Insertion loss - user outputs | Sat. | 5-20 dB avg |
Terr. active / passive | 12/26 dB avg | |
Insertion loss - trunk outputs | Sat. | 3 dB avg |
Terr. | 5 dB avg | |
Sat. inputs isolation | At user outputs | 20 dB min |
At trunk outputs | 25 dB min | |
Maximum input level* | Sat./Terr. | 105 / 105 dBµV |
Maximum user output level* | Sat./Terr. | 100 / 93 dBµV |
Current consumption | Per user output | 100 mA at 18V DC |
Dimensions (w,d,h) | - | 18.6 x 24.5 x 5.1 cm |
Temperature range | - | -25 ~ +60 °C |
Weight | - | 1.050 kg |
