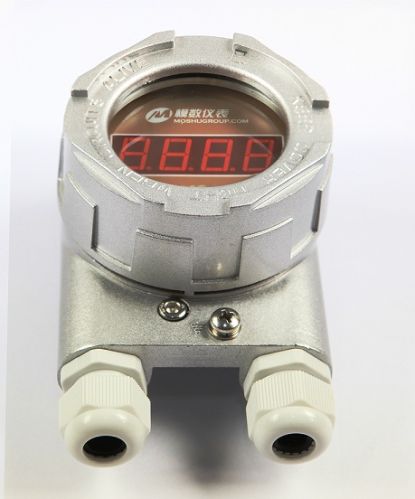

MS199 Series Field-mounted Temperature Transmitter

MOQ1 Set(s)
Number Of Flowerwhite
InputRTD/TC/Ohm/mV
installField-mounted
isolate1500V
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Product Details

Number Of Flowerwhite
InputRTD/TC/Ohm/mV
isolate1500V
installField-mounted
output4-20mA
Digital displayLED

• Universally PC programmable (PCP)
• Voltage drop only 8V within whole loop circuit
• Two-wire technology, analog output 4 to 20 mA
• LED Display
• Operation, visualization and maintenance with PC
• Highly accurate in entire operating temperature range
• Sensor monitoring: Failure conditioning in event of sensor break or sensor short-circuit
• Ex-Certification
• IP67（aluminum alloy casing）,IP65（plastic casing）
• Galvanic isolation
• Output simulation
Field of application
• PC programmable (PCP) Field-mounted temperature transmitter for converting various input signals into a scalable 4 to 20 mA analog output signal
• Input:
-Resistance thermometer (RTD)
-Thermocouple (TC)
-Resistance transmitter (Ohm)
-Voltage transmitter (mV)
• Optional aluminum alloy casing for explosion proof application
• Configuration using a PC with MS181 configuration kit
