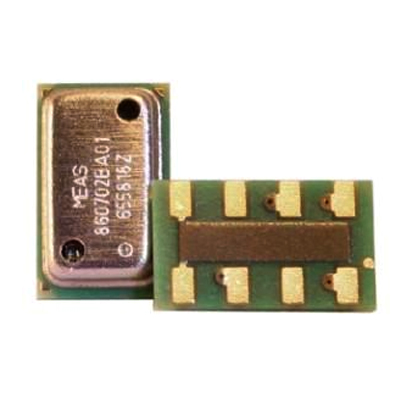

MS8607-02BA01 Integrated Pressure Sensor

Ms8607-02ba01
pht combination sensor
specifications
* integrated pressure, humidity and temperature sensor
* qfn package 5 x 3 x 1 mm3
* operating range: 10 to 2000 mbar, 0%rh to 100%rh, -40 to 85 °c
* high-resolution module: 0.016 mbar, 0.04%rh, 0.01°c
* supply voltage: 1.5 to 3.6 v
* fully factory calibrated sensor
* i2c interface
description
the ms8607 is the novel digital combination sensor of meas providing 3 environmental physical measurements all-in-one: pressure, humidity and temperature (pht). This product is optimal for applications in which key requirements such as ultra low power consumption, high pht accuracy and compactness are critical. High pressure resolution combined with high pht linearity makes the ms8607 an ideal candidate for environmental monitoring and altimeter in smart phones and tablet pc, as well as pht applications such as hvac and weather stations. This new sensor module generation is based on leading mems technologies and latest benefits from measurement specialties proven experience and know-how in high volume manufacturing of sensor modules, which has been widely used for over a decade.
Field of application
* smart phones and tablet pcs
* hvac applications
* weather station
* printers
* home appliance and humidifiers
