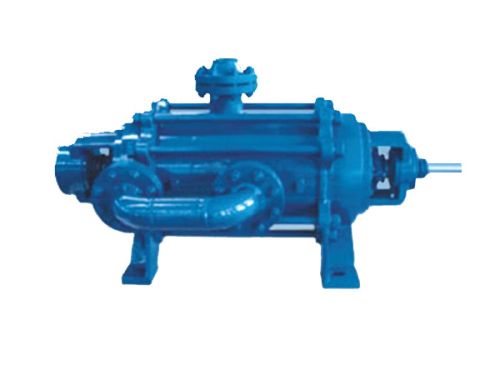

MSD Multistage Slurry Pump

Product Description MSD type series multistage slurry pump is special designed for delivering liquid with suspending fine solids particle with high head. Product Application Especially suitable for high head. Performance range Size: 3-6 inches Capacity: 50-400m3h Head: 120-600m Material: CD4MCu, hard alloy,  SS304,SS316L,Duplex SS Seal: packing seal,expeller seal,mechnical seal. Main Features A large percentage of duties allow the use of the ce ntrifugal seal which eliminates the need of sealing water.Gland shaft sealA packed gland type shaft seal is also available and can be fitted with a lowflow or a full flow flush seal water arrangement.Shaft and bearing assemblyA large diameter shaft with a short overhang minimizes deflection andvibration.Heavy-duty roller bearings are housed in a removable bearingcartridge.Pump BaseA minimum number if through bolts hold the pump casing to the frame .A means ofimpeller adjustment is provided in a convenient position below the bearinghousing.Outer Casing Split outer casing halves of cast or ductile iron contain the wear linersand provide high operation pressure capabilities.ImpellerThe impeller may be either moulded elastomer or hard metal.Deep side sealingvanes relieve seal pressure and minimize recirculation. Cast-in impeller threads are better suited for slurries.Interchangeable hard metal and moulded elastomer liners.Mating faces in hard metal liners are tapered to allow positive alignmentduring assembly and allow components
