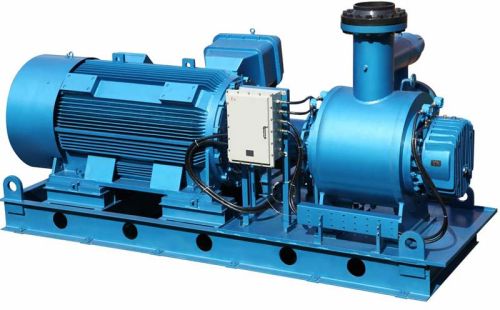

MT Series Twin Screw Pump

Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

We are the most preferred manufacturer, exporter and supplier of excellent quality MT Series Twin Screw Pump from China. This Screw pump is widely used in oil fields, petrochemical, chemical, food,....

View More Details

Send Enquiry

Company Information

Chongqing Blaily Instrumentation Co., Ltd.

Chongqing

View Number

Member Since 15 Years
Nature of Business Manufacturer
Year of Establishment 2007

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

We are the most preferred manufacturer, exporter and supplier of excellent quality MT Series Twin Screw Pump from China. This Screw pump is widely used in oil fields, petrochemical, chemical, food, paper, ship building and other industries. This Screw Pump is manufactured under the supervision of skilled professionals ensuring a product with high efficiency, low noise, and little abrasion and long service life. Due to the high-end design, this pump can handle any required flow and pressure. This Pump has a performance range of 0~800m3/h volume and 0~4.0Mpa pressure.

Product Features : MT twin-screw pump type is a well-proven design of high efficiency, energy saving, little abrasion, long service life and low noise. The pump is able to handle the required flow and pressure.It has been widely used in petroleum, chemical, fiber, pharmaceutical industry, food production, paint and paper industries.

Detalis :

Maintain a certain gap between spiral and spiral, and between spiral and the lining sleeve, no mechanical wear, low noise, long life.
Use standard structure, bearing and synchronous gear and independent lubrication, which doesn’t contact the medium, can convey lubricating and non-lubricating medium. A short shaft structure is capable of conveying lubricating medium.
Has a pump body insulation, sealing and cooling system, for the high temperature medium conveying.
High efficiency and energy saving, low failure rate.
By using different materials, various mediums can be conveyed e.g. corrosive and non-corrosive mediums, mixture of gas and liquid.
Realize the flow adjustment under constant pressure, suitable for frequency control.

Range of performance

Volume: 0~800m3/h
Pressure: 0~4.0Mpa
Medium viscosity: 1~100000cst
Medium temperature: 0~320 (conveying high-temperature material, pls. see detailed specification when ordering)

Application Fields :

Oil field - Crude oil, oil and gas mixture, polymer, as a multiple pump
Petrochemical - Heavy oil, crude oil, asphalt, fuel oil, grease, lubricant, oil additives, gasoline, kerosene, diesel, various resins etc.
Coal chemical industry - Coal asphalt, coal tar
Chemical fiber - Viscose, polyester
Chemical industry - Glycerin, sorbitol, cosmetics, shampoo, toothpaste, cleansing cream, soap, washing powder slurry, titanium dioxide, ink, paint, latex paint, glue, a variety of high viscosity materials, polymer.
Foods - hocolate, milk, dairy products, juice, jam, sauces, syrups, honey, beverages, spices, vegetable oil, soy protein, xanthan gum, starch, yeast solution Pharmaceutical- Syrup, health products, Preparation of medicine
Paper - Paper pulp, adhesives, additives
Shipbuilding - Lubricating oil pump, fuel pump, cargo oil pump
Oil wharf - Unloading pump, loading pump, ship unloading pump, ship loading pump
Thermal power plant - Heavy oil delivery pump, heavy oil fuel pump
Water power plant - Lubricating oil pumpDifferent pumps will have the same NPSHr as long as they are same in lead, speed and viscosity.

Performance Parameter (1450rpm Performance)

Model	Capacity(m³/h)	Pressure(MPa)	Speed(rpm)	Viscosity(cst)	Power(kw)	Diameter(mm)
SMT1-16	2~6	0.2~4	1450	10~1500	2.0~13	50
SMT1-20	6~8	0.2~4	1450	10~1500	2.6~14	50
SMT1-30	7~12	0.2~2.5	1450	10~1500	2.6~14	50
SMT1-40	10~15	0.2~2.0	1450	10~1500	2.6~15	50
SMT1-50	14~19	0.2~2.0	1450	10~1500	3~18	50
SMT1-58	18~22	0.2~1.5	1450	10~1500	4~17	50
SMT2-24	5~12	0.2~4	1450	10~1500	2.5~20	80
SMT2-32	8~16	0.2~3.5	1450	10~1500	3~22	80
SMT2-40	10~20	0.2~3.0	1450	10~1500	3~25	80
SMT2-48	14~24	0.2~2.4	1450	10~1500	4~26	80
SMT3-32	14~24	0.2~4	1450	10~1500	6~40	100
SMT3-40	20~30	0.2~3.2	1450	10~1500	6~45	100
SMT3-48	23~36	0.2~2.8	1450	10~1500	7~48	100
SMT3-60	27~42	0.2~2.0	1450	10~1500	8~45	100
SMT3-72	42~50	0.2~1.0	1450	10~1500	8~34	100
SMT4-48	50~68	0.2~3.0	1450	10~1500	10~75	150
SMT4-56	61~80	0.2~3.0	1450	10~1500	10~96	150
SMT4-64	72~90	0.2~2.5	1450	10~1500	10~82	150
SMT4-72	70~104	0.2~2.0	1450	10~1500	10~76	150
SMT4-88	95~126	0.2~1.5	1450	10~1500	14~78	150
SMT5-25	16~35	0.2~4.0	1450	10~1500	5~54	150
SMT5-30	25~40	0.2~4.0	1450	10~1500	6~62	150
SMT5-38	38~52	0.2~3.5	1450	10~1500	7~68	150
SMT5-50	55~69	0.2~3.0	1450	10~1500	8~77	150
SMT5-62	73~90	0.2~2.5	1450	10~1500	10~86	150
SMT5-75	87~104	0.2~2.0	1450	10~1500	11~81	150
SMT5-90	106~125	0.2~1.5	1450	10~1500	13~77	150
SMT6~28	38~66	0.2~4.0	1450	10~1500	10~103	200
SMT6~33	53~80	0.2~4.0	1450	10~1500	11~119	200
SMT6~43	80~102	0.2~3.5	1450	10~1500	13~131	200
SMT6~56	112~135	0.2~3.0	1450	10~1500	15~148	200
SMT6~75	153~179	0.2~2.5	1450	10~1500	19~164	200
SMT6~85	180~205	0.2~2.0	1450	10~1500	20~150	200
SMT6~96	202~224	0.2~1.5	1450	10~1500	22~137	200
SMT6~112	242~267	0.2~1.5	1450	10~1500	26~122	200
SMT7T.2-28	38~96	0.2~6.0	1450	10~1500	20~223	250
SMT7T.2-33	60~144	0.2~4.0	1450	10~1500	21~189	250
SMT7T.2-50	131~172	0.2~3.5	1450	10~1500	24~233	250
SMT7T.2-67	186~228	0.2~3.0	1450	10~1500	28~259	250
SMT7T.2-85	232~287	0.2~2.5	1450	10~1500	32~272	250
SMT7T.2-94	267~325	0.2~2.0	1450	10~1500	35~255	250
SMT7T.2-112	330~380	0.2~1.5	1450	10~1500	40~238	250
SMT7T.2-130	370~445	0.2~1.5	1450	10~1500	43~267	250
SMT8-50	188~310	0.2~4.0	1450	10~1500	40~400	300
SMT8-67	300~420	0.2~3.0	1450	10~1500	50~398	300
SMT8-85	399~520	0.2~2.0	1450	10~1500	60~394	300
SMT8-100	500~620	0.2~1.8	1450	10~1500	66~399	300
SMT8-112	575~700	0.2~1.6	1450	10~1500	72~365	300
SMT8-130	780~800	0.2~1.2	1450	10~1500	82~375	300

Performance Parameter (960rpm Performance)

Model	Capacity(m³/h)	Pressure(MPa)	Speed(rpm)	Viscosity(cst)	Power(kw)	Diameter(mm)
SMT1-16	2~4	0.2~4	960	300~3000	2.0~6	50
SMT1-20	2.6~5	0.2~3	960	300~3000	2.4~8	50
SMT1-30	5~8	0.2~2.5	960	300~3000	2.6~10	50
SMT1-40	7~10	0.2~2.0	960	300~3000	3~10	50
SMT1-50	9~12	0.2~2.0	960	300~3000	3~12	50
SMT1-58	11~15	0.2~1.5	960	300~3000	4~11	50
SMT2-24	2~8	0.2~4	960	300~3000	3~13	80
SMT2-32	4~10	0.2~3.5	960	300~3000	3.5~15	80
SMT2-40	6~13	0.2~3.0	960	300~3000	4~16	80
SMT2-48	10~16	0.2~2.4	960	300~3000	4.6~17	80
SMT3-32	8~16	0.2~4	960	300~3000	7~28	100
SMT3-40	12~20	0.2~3.2	960	300~3000	8~29	100
SMT3-48	16~24	0.2~2.8	960	300~3000	9~31	100
SMT3-60	20~27	0.2~2.0	960	300~3000	9~29	100
SMT3-72	27~32	0.2~1.0	960	300~3000	10~25	100
SMT4-48	30~45	0.2~3.0	960	300~3000	10~55	150
SMT4-56	32~52	0.2~3.0	960	300~3000	12~60	150
SMT4-64	40~60	0.2~2.5	960	300~3000	12~54	150
SMT4-72	40~68	0.2~2.0	960	300~3000	11~50	150
SMT4-88	61~83	0.2~1.5	960	300~3000	15~50	150
SMT5-25	13~22	0.2~4.0	960	300~3000	7~36	150
SMT5-30	17~27	0.2~4.0	960	300~3000	7~41	150
SMT5-38	25~34	0.2~3.5	960	300~3000	8~45	150
SMT5-50	36~45	0.2~3.0	960	300~3000	10~41	150
SMT5-67	50~60	0.2~2.5	960	300~3000	11~58	150
SMT5-75	58~68	0.2~2.0	960	300~3000	12~54	150
SMT5-90	71~82	0.2~1.5	960	300~3000	14~52	150
SMT6~28	28~43	0.2~4.0	960	300~3000	13~68	200
SMT6~33	36~52	0.2~4.0	960	300~3000	14~79	200
SMT6~43	53~67	0.2~3.5	960	300~3000	15~87	200
SMT6~56	72~88	0.2~3.0	960	300~3000	18~98	200
SMT6~75	100~117	0.2~2.5	960	300~3000	21~109	200
SMT6~85	115~135	0.2~2.0	960	300~3000	23~102	200
SMT6~96	130~145	0.2~1.5	960	300~3000	24~90	200
SMT6~112	160~175	0.2~1.0	960	300~3000	27~82	200
SMT7T.2-33	55~75	0.2~4.0	960	300~3000	27~126	250
SMT7T.2-50	95~112	0.2~3.5	960	300~3000	30~155	250
SMT7T.2-67	130~150	0.2~3.0	960	300~3000	33~172	250
SMT7T.2-85	162~188	0.2~2.5	960	300~3000	37~181	250
SMT7T.2-94	186~212	0.2~2.0	960	300~3000	39~170	250
SMT7T.2-112	226~250	0.2~1.5	960	300~3000	42~158	250
SMT7T.2-130	258~290	0.2~1.5	960	300~3000	46~178	250
SMT8-50	151~200	0.2~4.0	960	300~3000	48~300	300
SMT8-67	227~272	0.2~3.0	960	300~3000	56~306	300
SMT8-85	300~344	0.2~2.0	960	300~3000	66~281	300
SMT8-100	358~405	0.2~2.0	960	300~3000	73~323	300
SMT8-112	400~456	0.2~2.0	960	300~3000	78~355	300
SMT8-130	470~530	0.2~2.0	960	300~3000	88~407	300

Performance Parameter (NPSHR)

Head	Speed 950rpm cst	Speed 1450rpm cst
	≤40	750	1500	≤40	750	1500
	NPSHr (m)
11	1.52	1.54	1.54	1.54	1.57	1.59
14	1.53	1.55	1.57	1.56	1.61	1.63
15	1.53	1.56	1.57	1.56	1.62	1.65
18	1.54	1.58	1.6	1.59	1.66	1.7
20	1.55	1.59	1.62	1.6	1.69	1.73
22	1.56	1.63	1.63	1.62	1.72	1.76
24	1.57	1.64	1.66	1.65	1.76	1.82
25	1.57	1.64	1.67	1.65	1.78	1.83
27	1.58	1.66	1.69	1.67	1.81	1.88
28	1.59	1.67	1.7	1.69	1.83	1.9
30	1.6	1.69	1.73	1.71	1.87	1.95
33	1.62	1.72	1.77	1.75	1.94	2.03
34	1.62	1.73	1.78	1.76	1.96	2.05
36	1.64	1.75	1.8	1.79	2.01	2.11
38	1.65	1.77	1.82	1.81	2.04	2.15
40	1.67	1.8	1.86	1.85	2.1	2.22
43	1.68	1.83	1.9	1.88	2.17	2.3
46	1.71	1.88	1.95	1.94	2.26	2.41
48	1.73	1.9	1.99	1.98	2.32	2.48
50	1.74	1.93	2.02	2.09	2.37	2.54
54	1.78	1.99	2.09	2.12	2.49	2.69
56	1.8	2.02	2.13	2.14	2.56	2.76
57	1.8	2.03	2.14	2.16	2.57	2.78
58	1.82	2.05	2.16	2.2	2.62	2.84
60	1.84	2.09	2.21	2.21	2.7	2.93
65	1.89	2.17	2.3	2.31	2.85	3.11
67	1.9	2.2	2.33	2.35	2.91	3.18
70	1.94	2.26	2.41	2.42	3.03	3.32
75	2	2.35	2.52	2.54	3.22	3.54
78	2.03	2.41	2.58	2.62	3.34	3.68
85	2.12	2.55	2.75	2.8	3.63	4.02
87	2.14	2.59	2.8	2.86	3.71	4.11
90	2.18	2.65	2.87	2.94	3.84	4.27
94	2.24	2.74	2.97	3.05	4.02	4.47
100	2.32	2.87	3.13	3.23	4.29	4.8
112	2.5	3.16	3.47	3.62	4.88	5.48
124	2.7	3.47	3.83	4.04	5.52	6.22
130	2.18	3.63	4.02	4.26	5.85	6.6
135	2.9	3.77	4.19	4.45	6.14	6.94
