Mtw Milling Machine

Listing ID #3826514

Get Latest Price

Supply Type Manufacturer, Exporter, Supplier

Preferred Buyer From : All over the world

Features Cone gear whole transmission-compact conformation, convenient installation, reducing dissipation of energy. Optimization design for grinding roller grinding ring of main-spring....

View More Details

Send Enquiry

Product Details

Features

Cone gear whole transmission-compact conformation, convenient installation, reducing dissipation of energy.
Optimization design for grinding roller grinding ring of main-spring pressurization, high-wearing feature.
High-performance powder concentrator design-accurate and quick selection of powder.
Unique wear proof perching knife design- fission type, convenient for maintenance, wear resistant material, long life.
Description

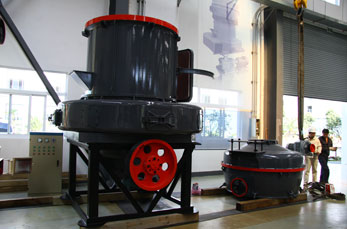

This MTW series milling machine is designed by our experts, according to collected advices from customers’ long-term experiences. It takes the most advanced patent technology from European and the supply the customers with outstanding performance at low costs.
Application

The MTW series milling machine is ideal machine for grinding barite, limestone, mica, talcum, quartz, calcite, granite, porcelain clay, basalt, gypsum, gold, iron ore, bauxite, copper, cement, coal etc. So it has wide application in powder making industry of construction, mining and paper-making and so on.

Model		MTW110	MTW138	MTW138Z	MTW175	MTW175Z	MTW215
Major diameter of roller(mm)		Ð¤360×190	Ð¤460×240	Ð¤460×240	Ð¤520×280	Ð¤580×280 (Ð¤520×280)	Φ640×320
Inner diameter of roller (mm)		Ð¤1100×190	Ð¤1380×240	Ð¤1380×240	Φ1750×280	Φ1750×280	Φ2150×320
Max.Feed Size(mm)		<30	<35	<35	<40	<40	<50
Final size(mm)		1.2-0.045, fineness can reach to 0.038	1.2-0.045, fineness can reach to 0.038	1.2-0.045, fineness can reach to 0.038	1.2-0.05, fineness can reach to 0.038	1.2-0.045, fineness can reach to 0.038	1.2-0.05, fineness can reach to 0.038
Capacity(th)		3-10	6-20	6-20	10-35	10-35	20-50
Main unit motor	Power(kw)	55	90	90 (110)	160	160 (185)	280
Centrifugal induced draft fan motor	Power(kw)	55	110	110 (132)	200	200 (220)	315
Classifier speed regulating motor(variable frequency motor)	Power(kw)	7.5	22	18.5	37	30	90
Magnetic Vibrating Feeder	Model	GZ2F	GZ3F	GZ3F	GZ4F	GZ4F	GZ5F
Magnetic Vibrating Feeder	Power(kw)	0.15	0.2	0.2	0.45	0.45	0.65
